HYDRAULIC TORQUE WRENCHES FIELD SERVICE • CALIBRATION
We stock a complete selection of
Multiplies – Custom Sockets – Specialty Tools
For immediate pickup or delivery
We offer unlimited field service, as well as torque wrench calibrations The most versatile Hydraulic Torque Wrench on the market. Using only one hose and a high strength die spring this tool operates as fast as a double acting tool at half the cost.
Let’s Talk Torquenomics
Using only one hose and high strength die spring, this tool operates as fast as double acting tools at half the cost!!!

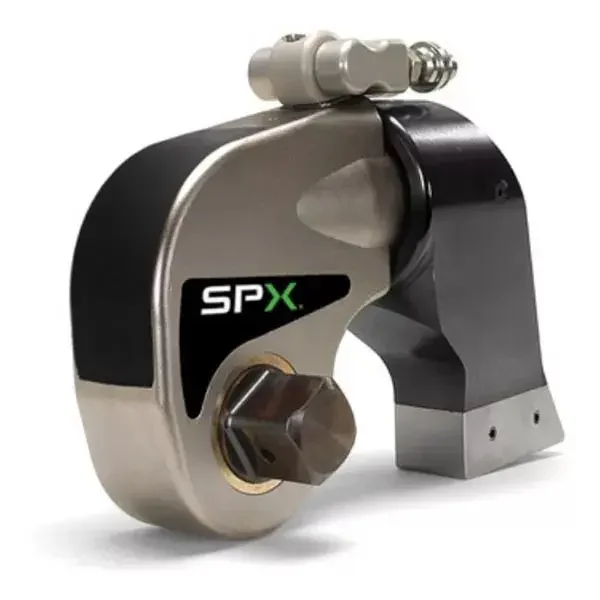

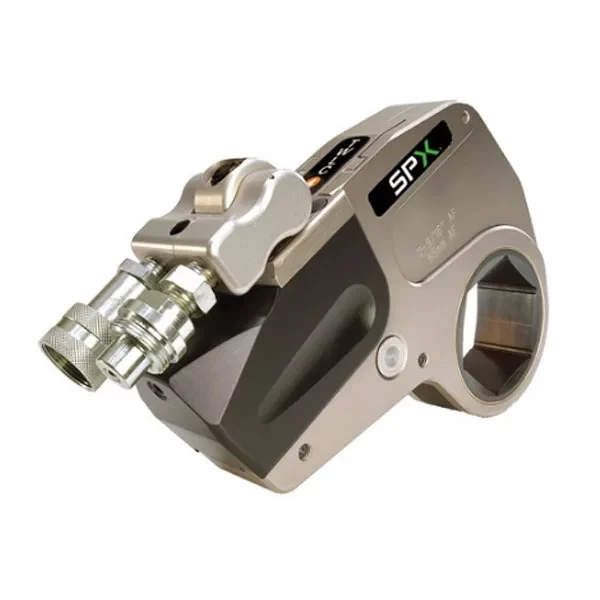

HYDRAULIC TORQUE WRENCH
That’s why it’s”Torquenomical”
- Knocker Wrenches
- Impact Sockets
- Solid Male Hex Drivers
- Custom Sockets

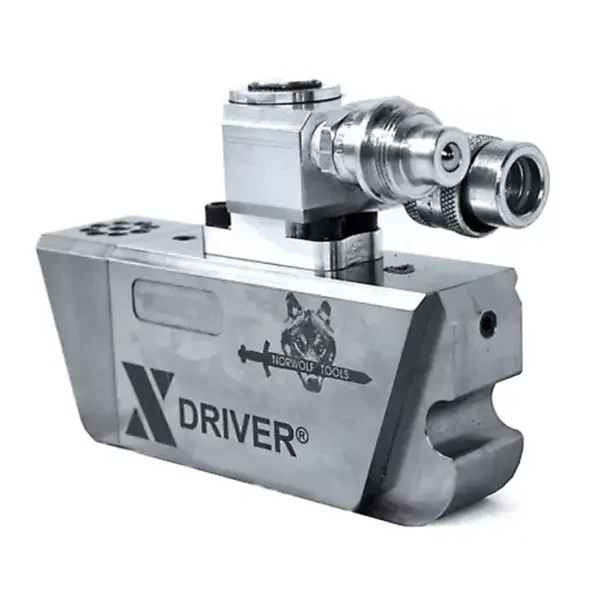

Norwolf X Driver

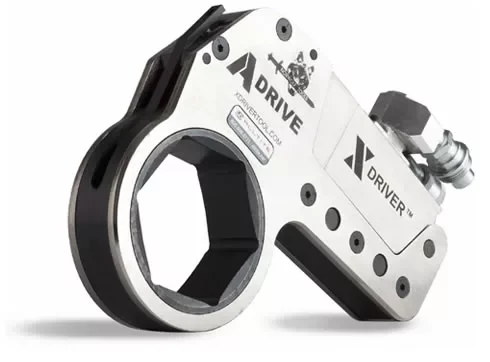

Norwolf A Drive

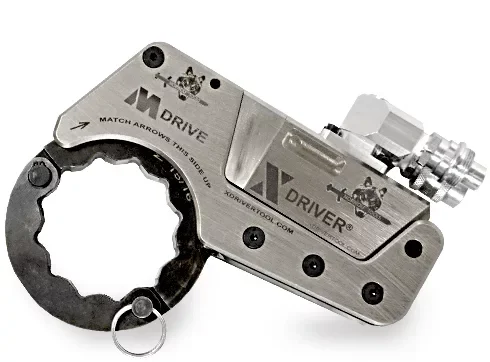

Norwolf M Drive
Norwolf V Drive
MISSING LINK • SWIVEL HAMMER • UNI-BAR • Z46 • BACKHOLD • STUDMATE • NORWOLF
WE ARE THE BOLTING EXPERTS!

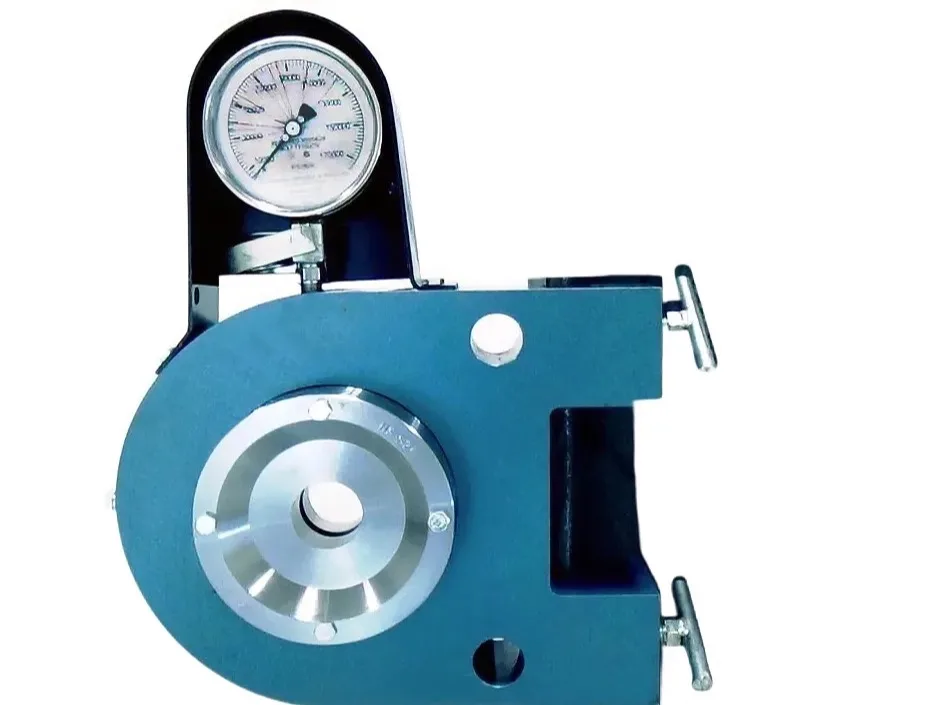

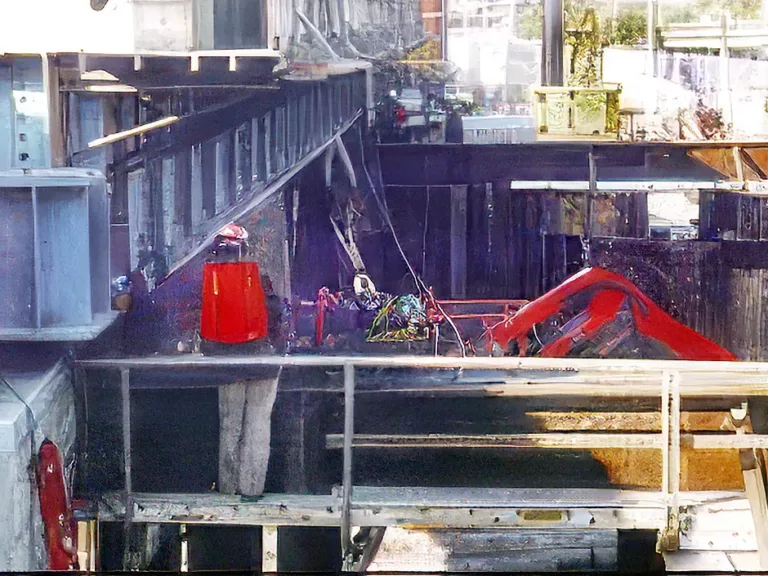

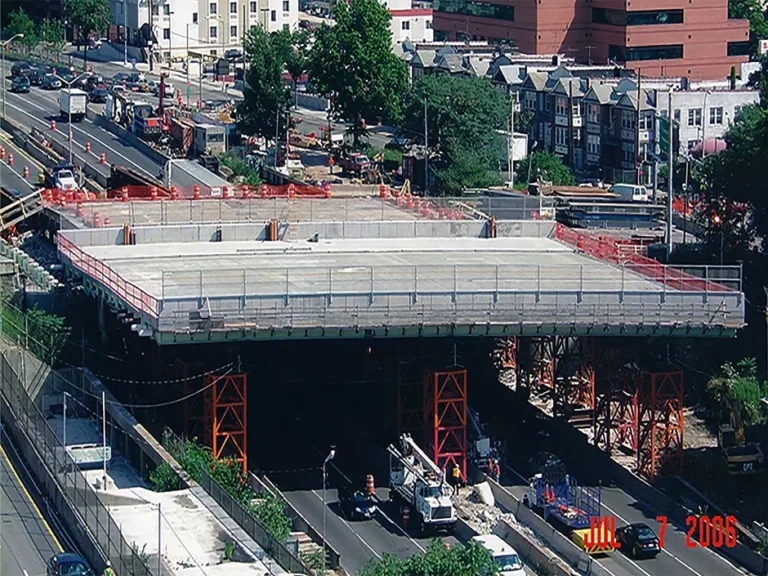

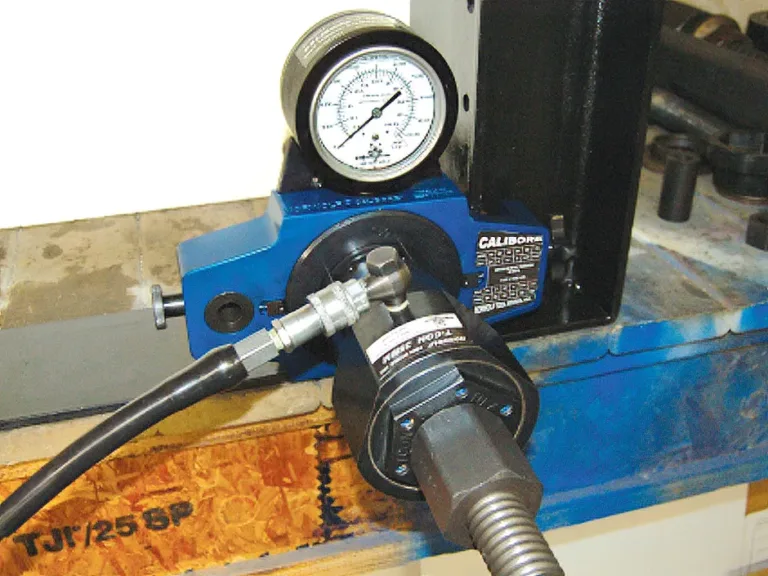

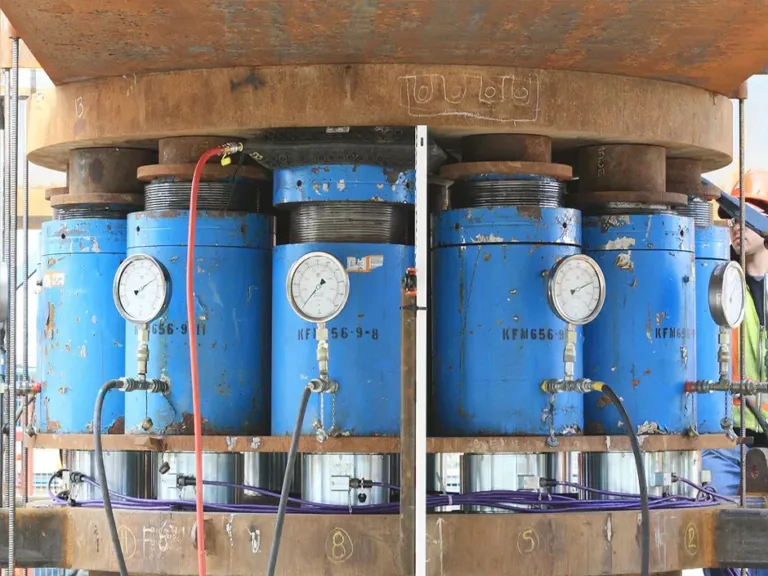

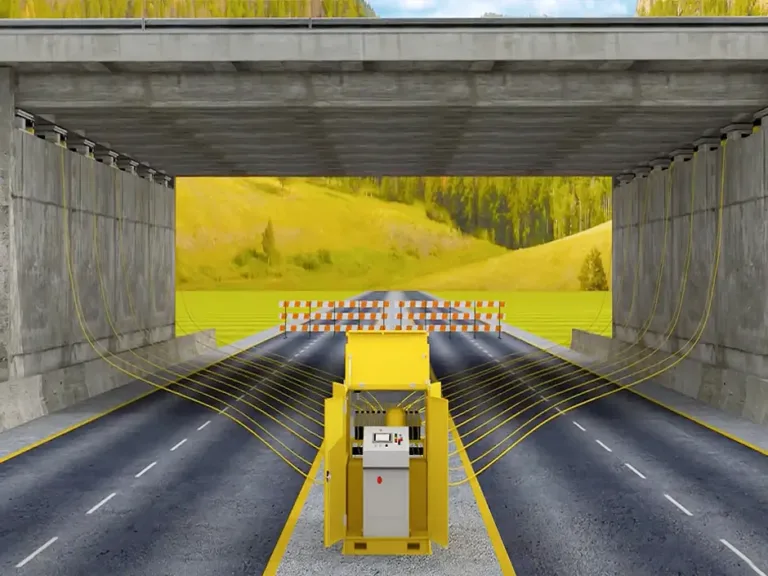

A large inventory of Enerpac, Power Team, Simplex, Freyssi Flat Jacks, Skidmore and Calibore equipment enables W.B. to answer any need rapidly and effectively. To discuss the best system for your bridge lowering, raising, or moving, call W. B. Equipment at 866-522-5464 or email email@example.com or firstname.lastname@example.org.
For more information about WB Equipment sales, rentals and service consult our website at https://www.wbequipment.com

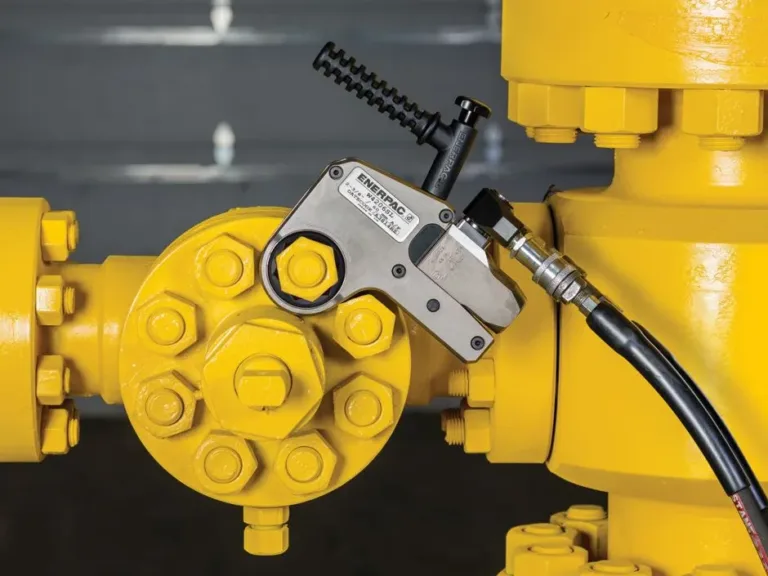

Enerpac Hydraulic Torque Wrenches to achieve proper tightening or loosening. - Now for Sale or Rent from WB Equipment
The main characteristics of a hydraulic torque wrench which set it apart from other powered wrenches of similar function are that it must generate torque using only hydraulic means it must be self ratcheting, and it must include an accurate method of determining the amount of torque applied.
In 1985, the Bolt Council : Research Council on Structural Connections, aka RCSC, specification permitted the use of the calibrated wrench method of installation, but with a clearer statement of the requirements of the method and its limitations.
In the calibrated wrench method the wrench is calibrated or adjusted to shut off when the desired torque is reached. In practice, several bolts of the lot to be installed are tightened in a calibrating device that directly reads the tension in the bolt. The wrench is adjusted to shut off at bolt tensions that are a minimum of 5% greater than the required preload.
Some manufacturers utilize a holding pawl design to keep the wrench locked in position prior to each power stroke, others use varying designs, which as in all industries have debatable faults or claimed advantages.
Hydraulic torque wrenches typically offer accuracy of ±3% and have a high degree of repeatability making them well suited to applications where large bolts are involved and a high degree of accuracy is required.

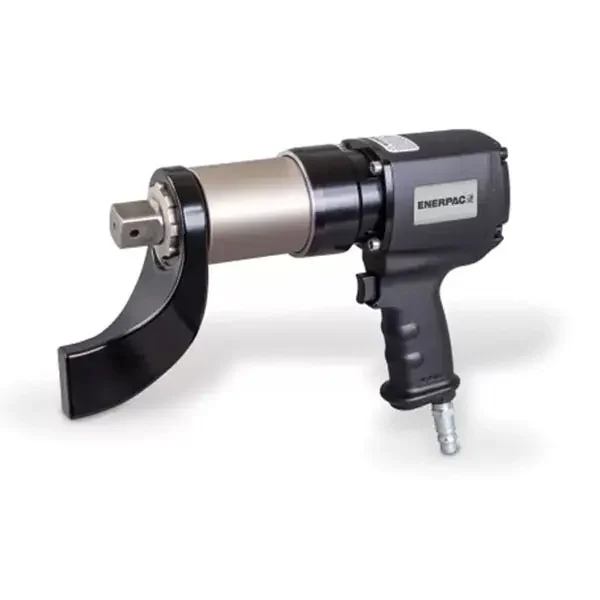

A hydraulic torque wrench is significantly quieter, lighter weight and more accurate than pneumatic impact wrenches capable of similar torque output, making it an appealing alternative for many users to the very loud and cumbersome impact wrenches or torque multipliers which were formerly the only viable option for working with very large nuts and bolts until the hydraulic torque wrench was introduced.

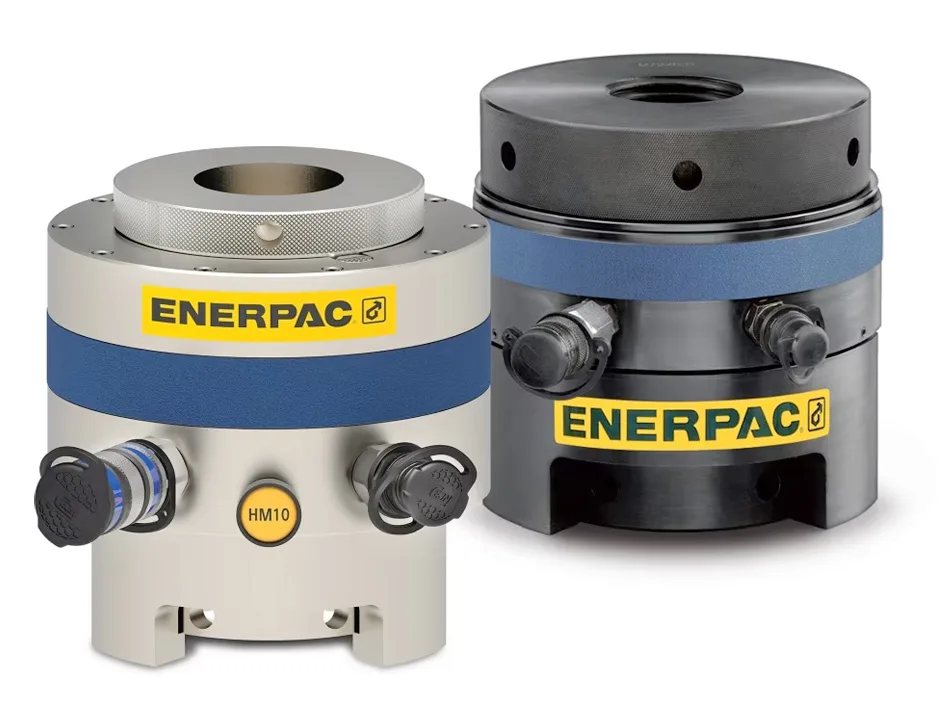

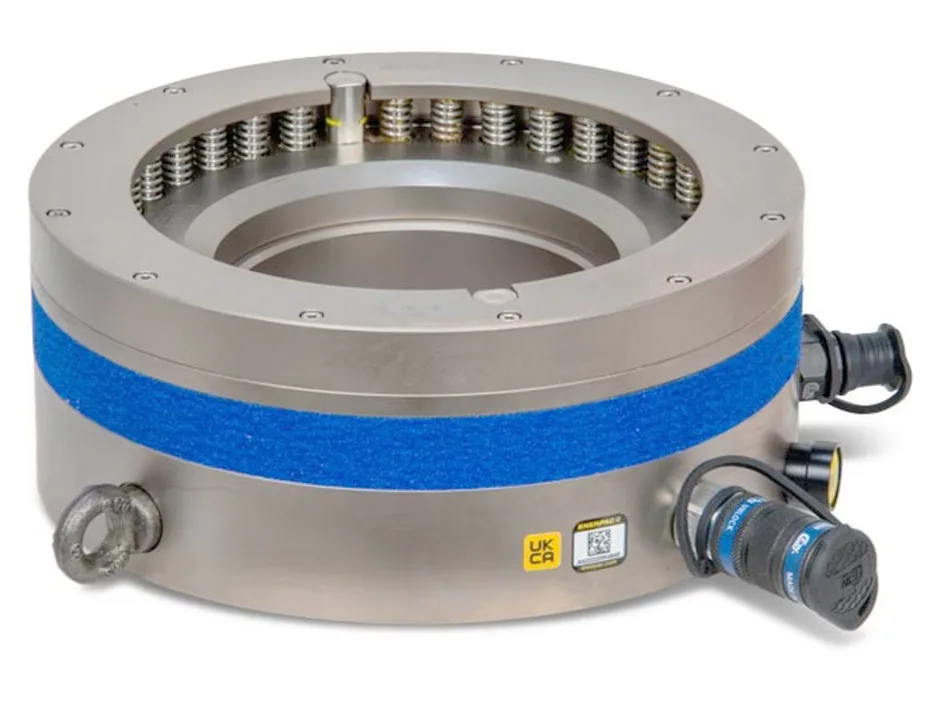

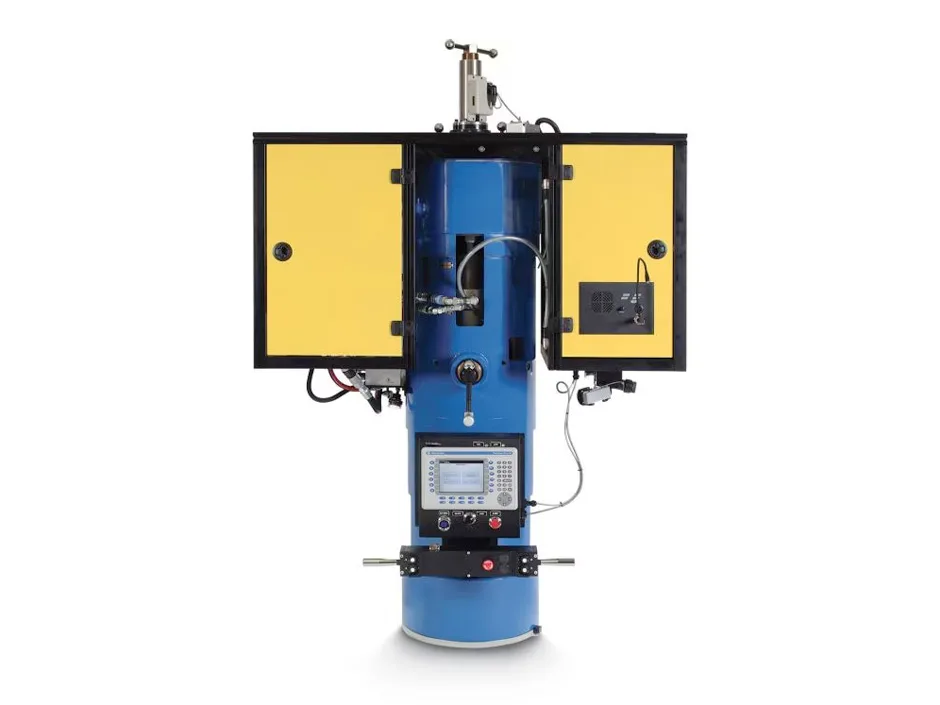

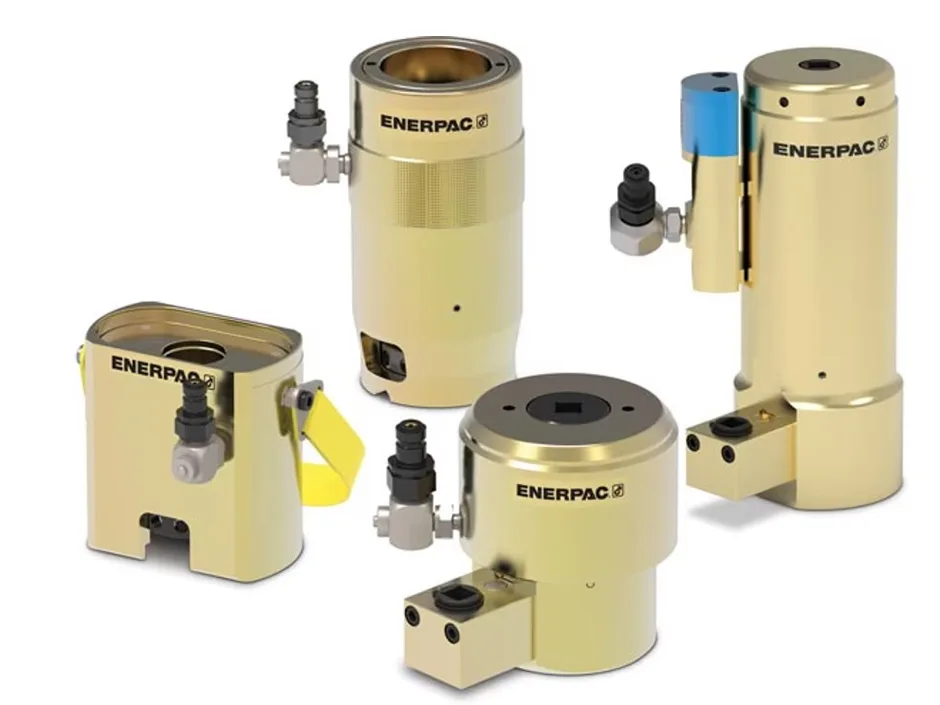

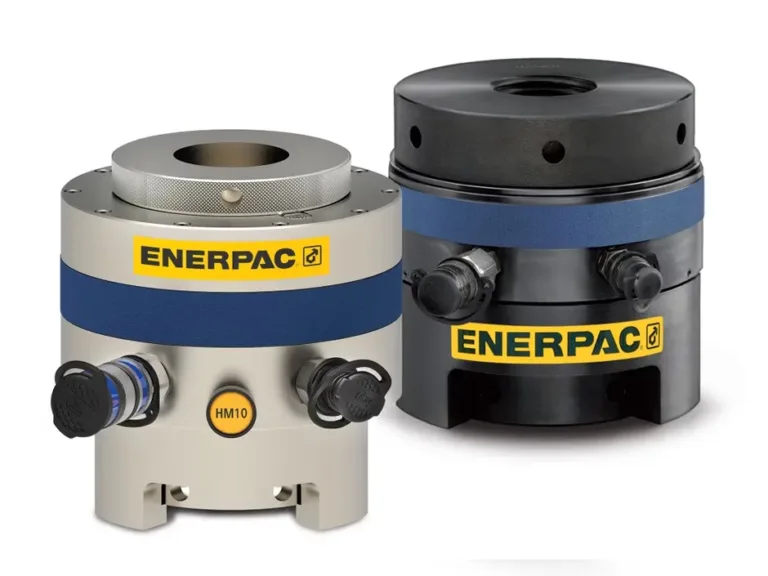

Bolt tensioners are an alternative to hydraulic torque wrenches, but, not as commonly used.

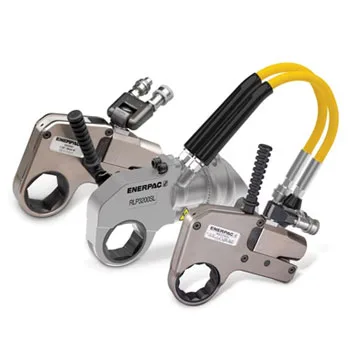

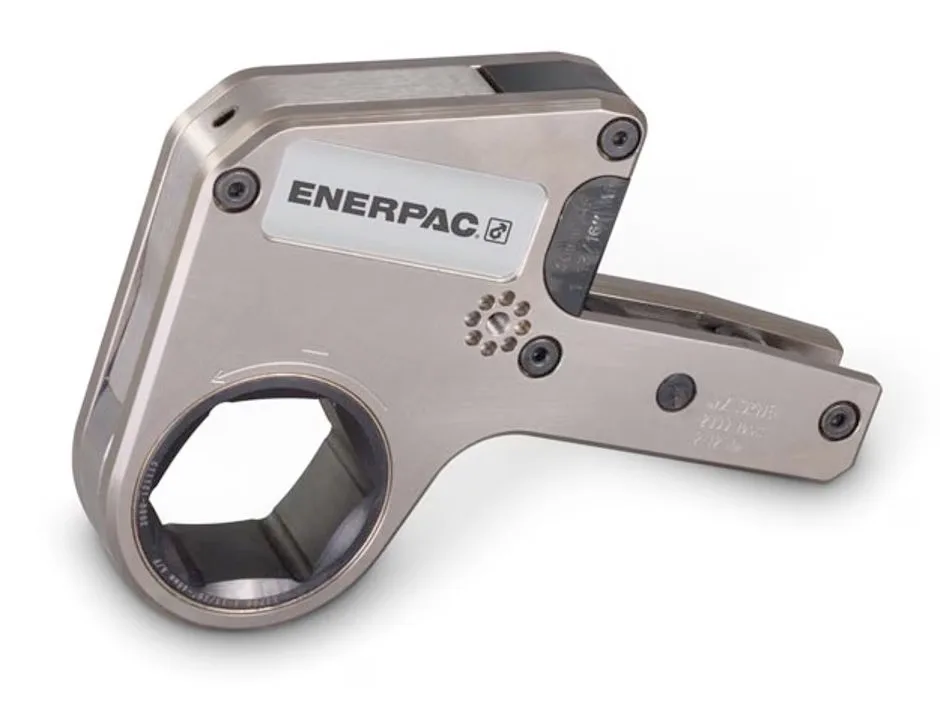

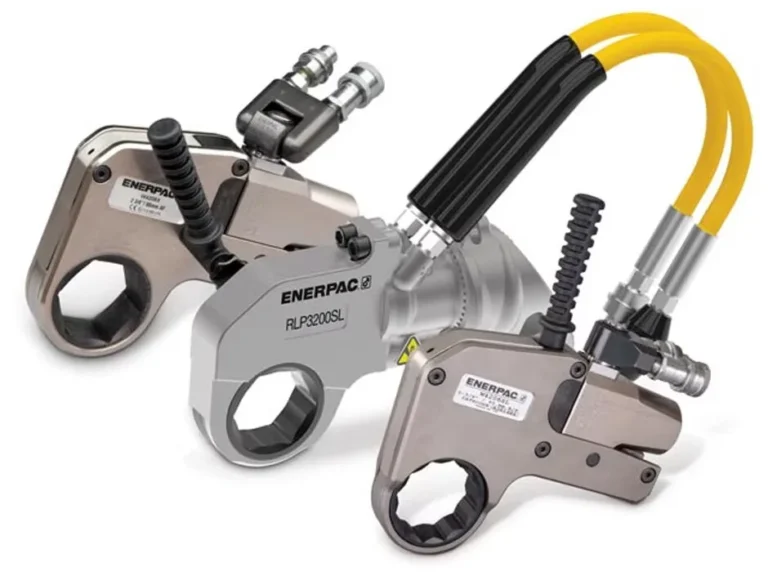

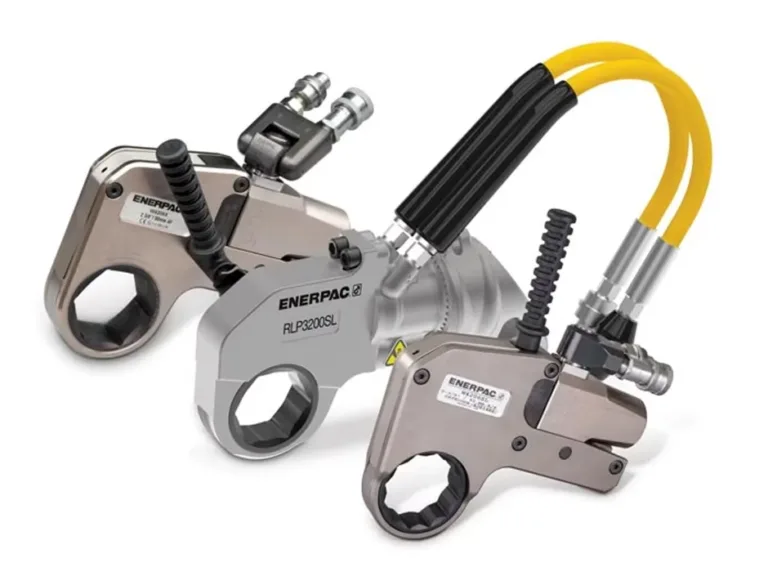

Enerpac Hydraulic Torque Wrenches
- Enerpac torque wrenches were designed using state-of-the art CAD techniques to bring you the most advanced square drive hydraulic torque wrench on the market.
- Rigid steel design guarantees durability, reliability and safety.
- Push button square drive release for quickly reversing the square drive for tightening or loosening
- Fine tooth ratchet prevents tool “lock-on”
- 360 degree swivel manifold with screw lock couplers
- Optional Allen key drives 14-85 mm, 1/2 – 2 1/4 inch
- Fast operation due to the large nut rotation per wrench cycle (35 degree) and rapid return stroke
- Constant torque output provides high accuracy (± 3%) across the full stroke
- Includes handle to improve tool handling and safety
- Tested and certified according to ATEX
Know what you need?
OTHER PRODUCTS by WB EQUIPMENT

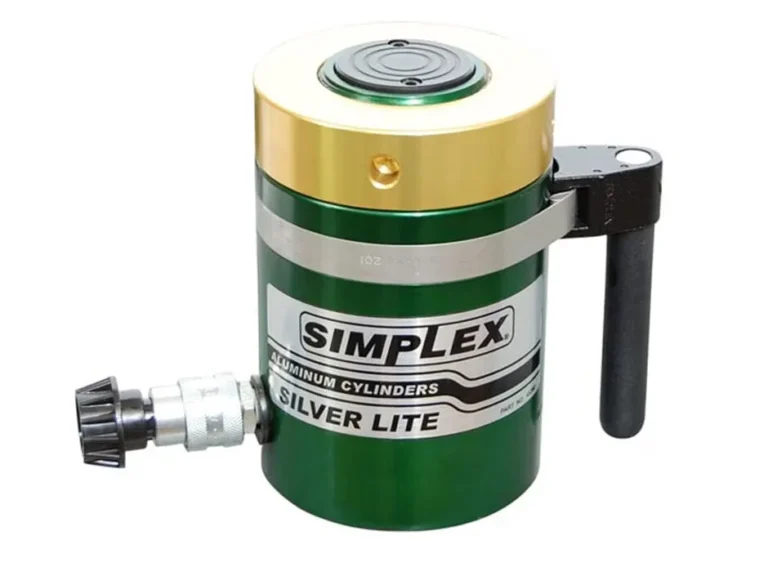

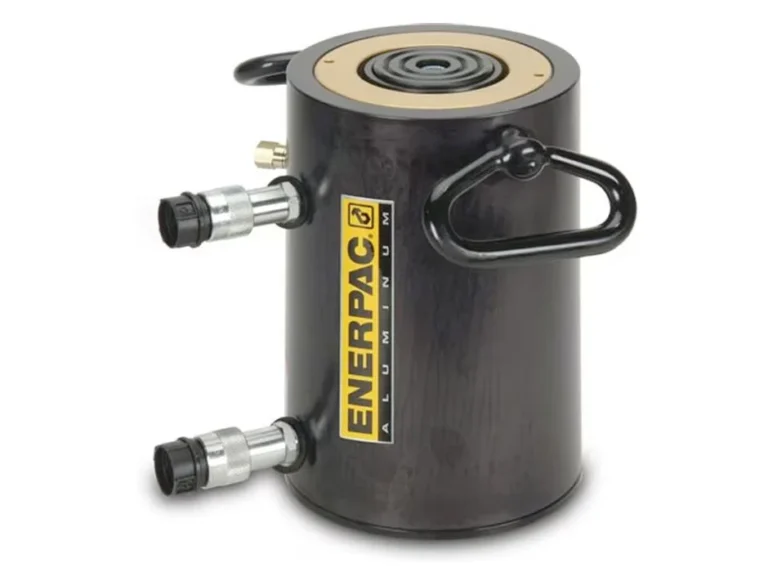

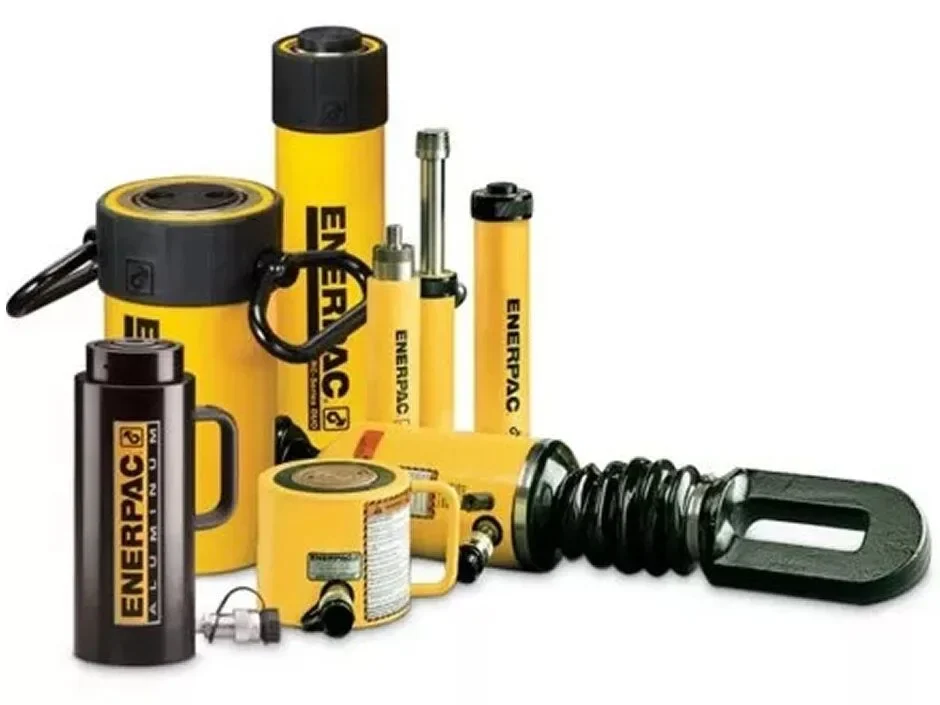

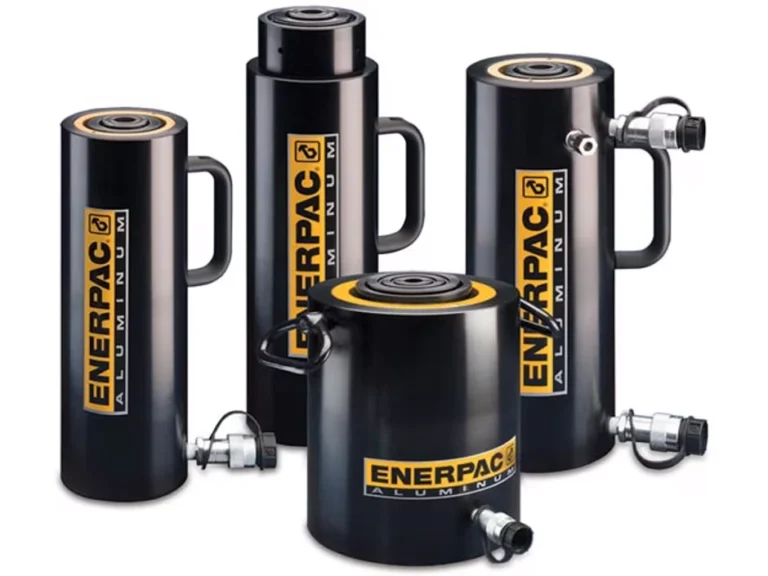

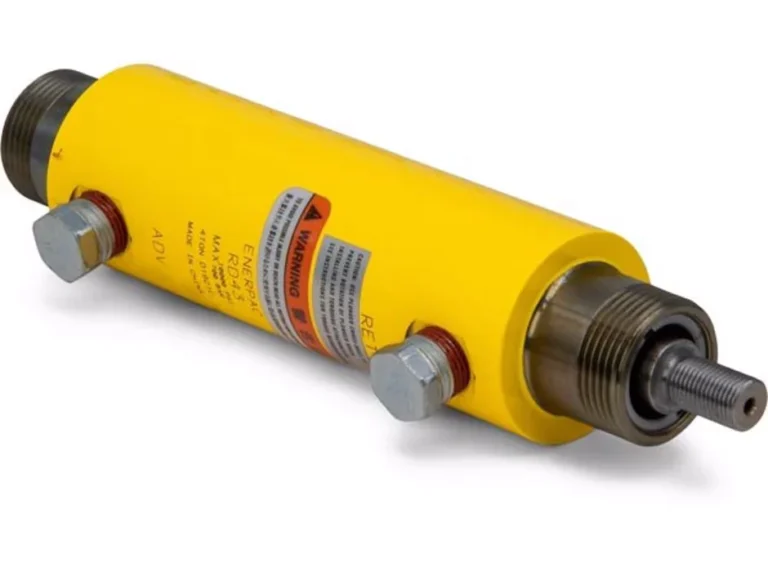

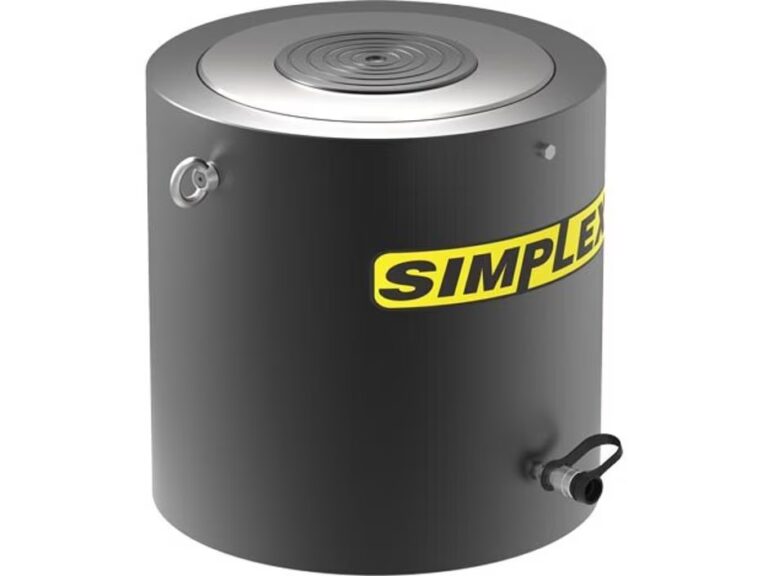

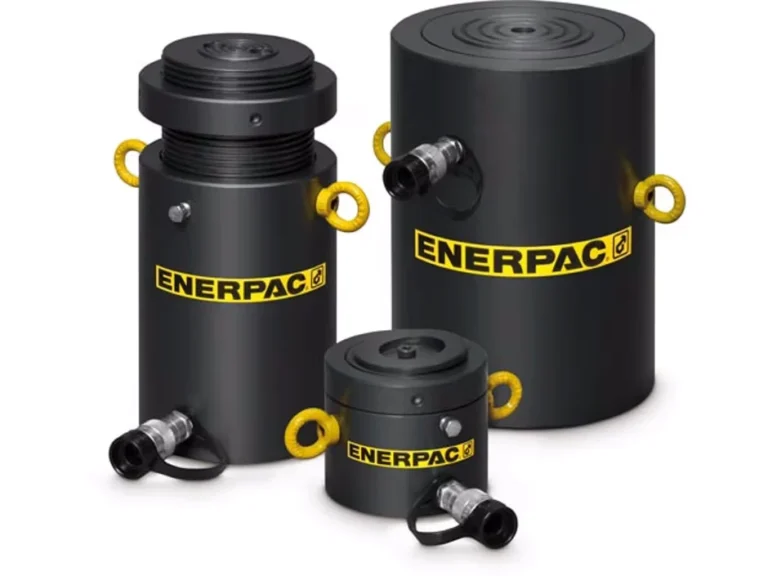

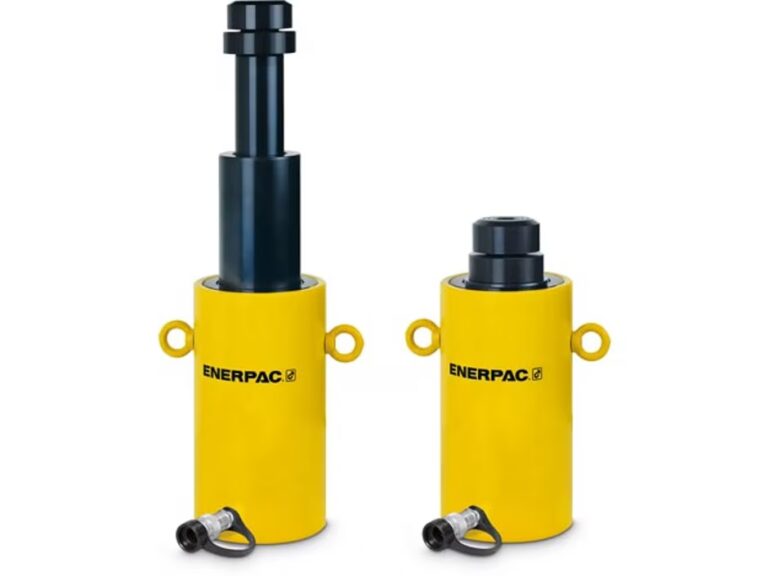

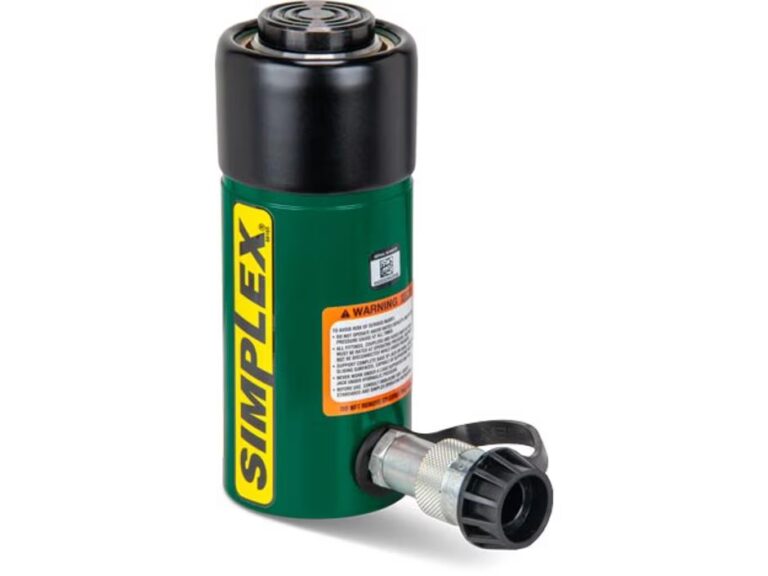

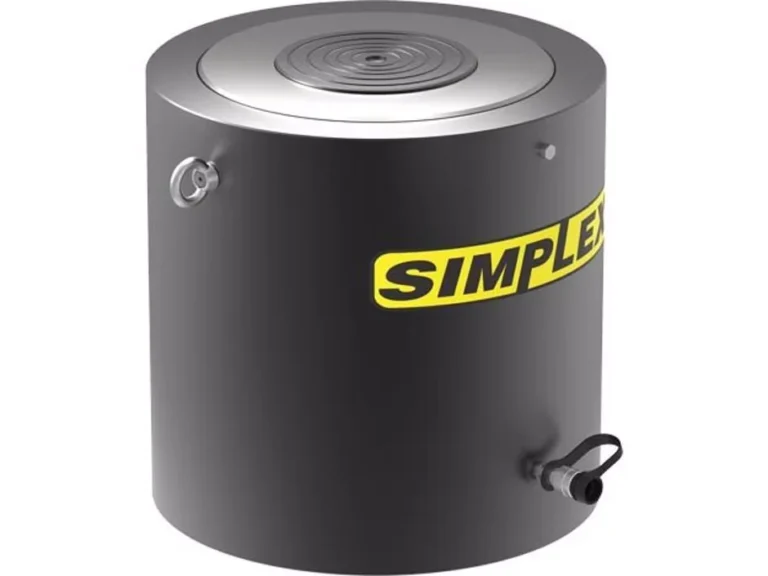

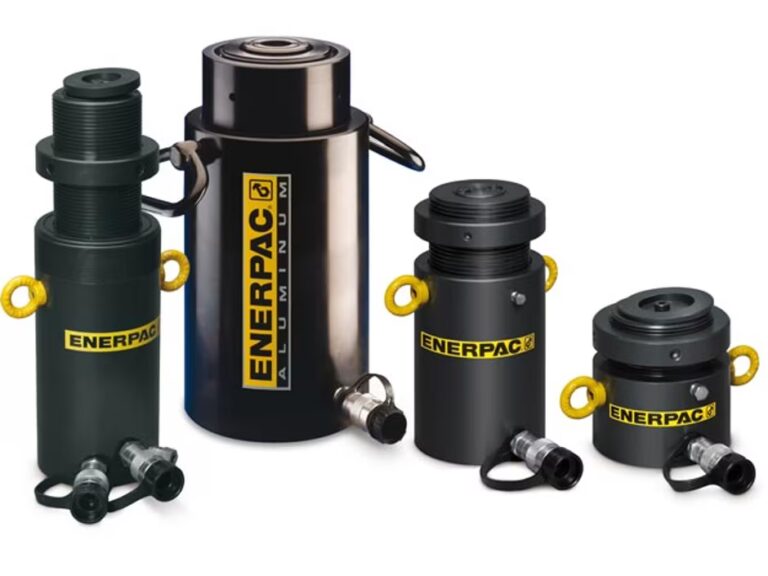

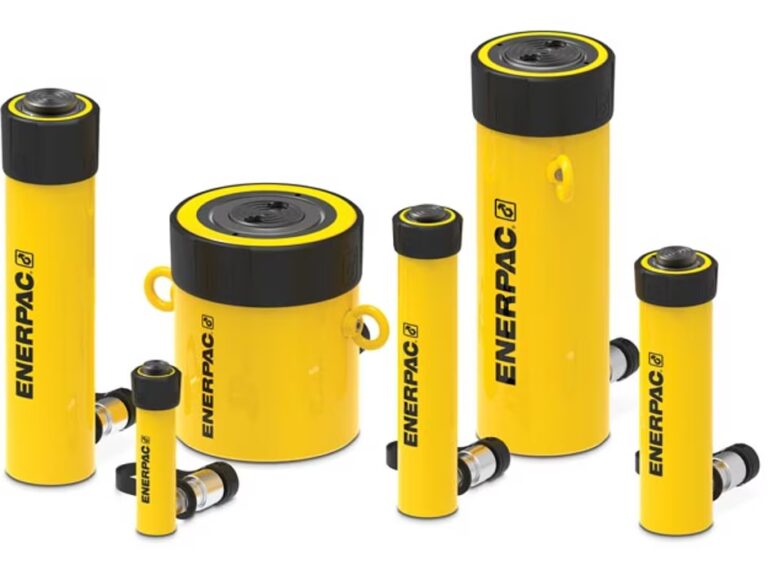

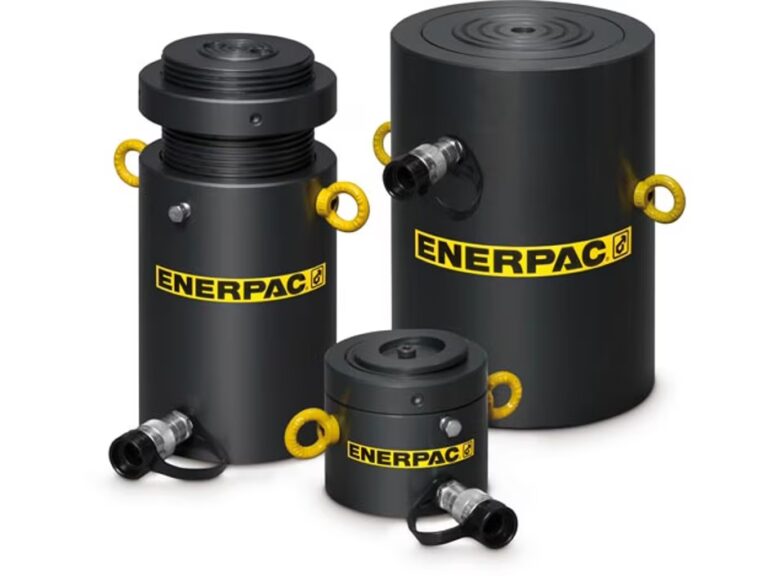

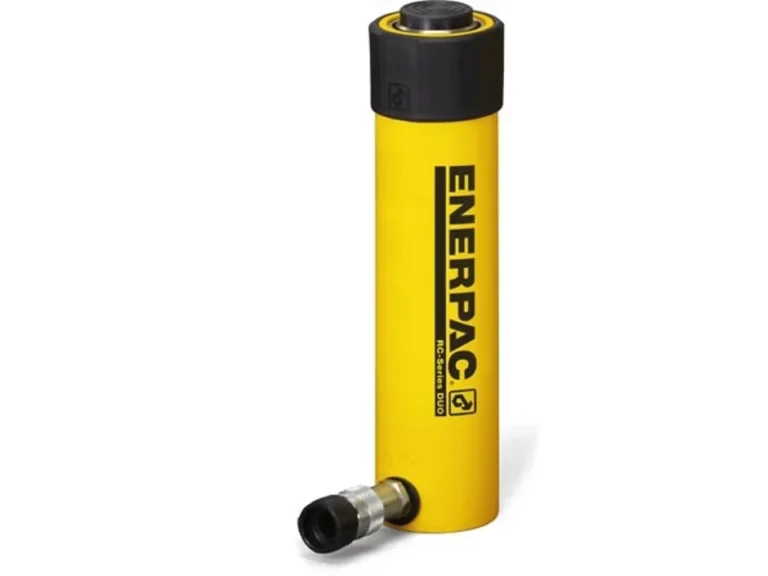

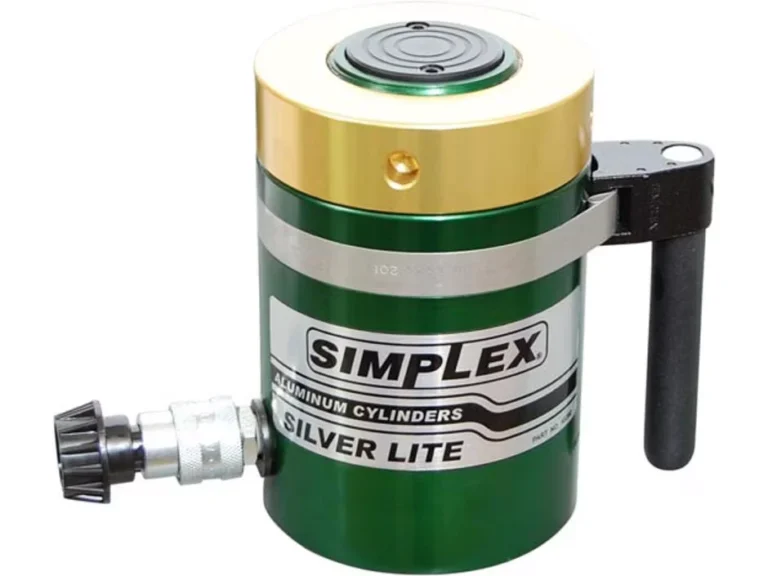

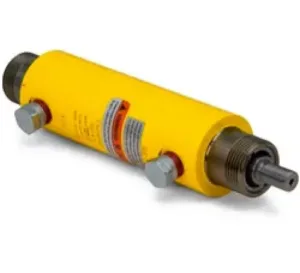

Custom hydraulic cylinders and hydraulic jacks made to order. Huge inventory readily available. With loads from 1 – 2,000 tons and pressure rating of 100 – I0,000 psi we can make any hydraulic cylinder or hydraulic jack to your exact requirements. Whether it be single acting, double acting, lockout or centerhole let us provide you with the right jacking system to perform your task.

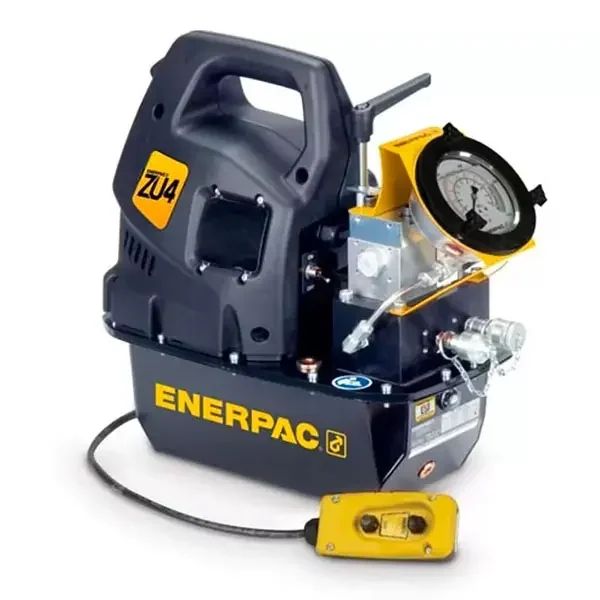

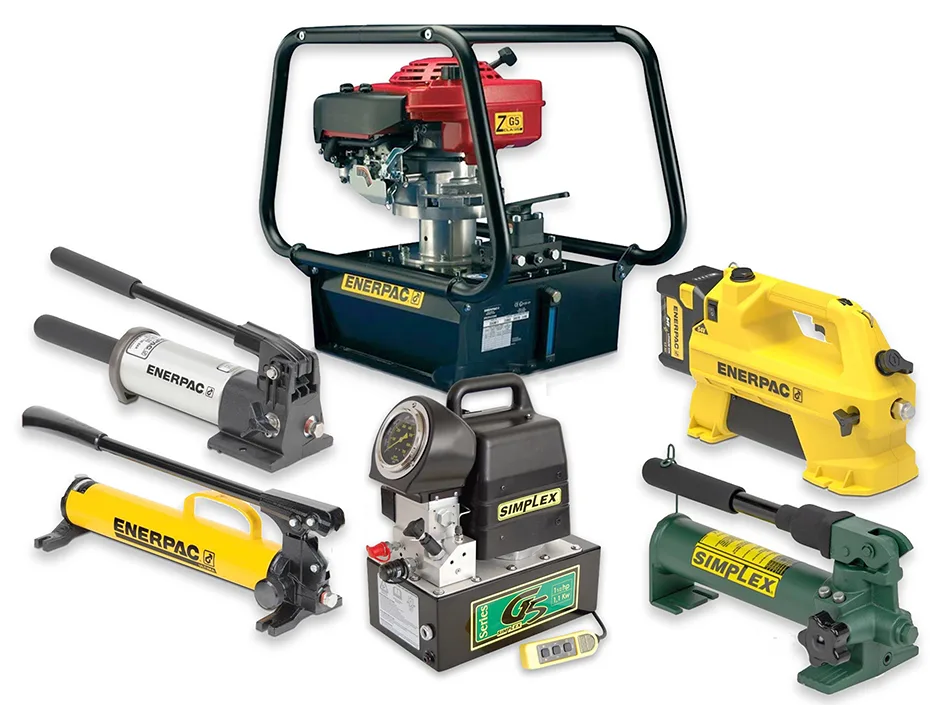

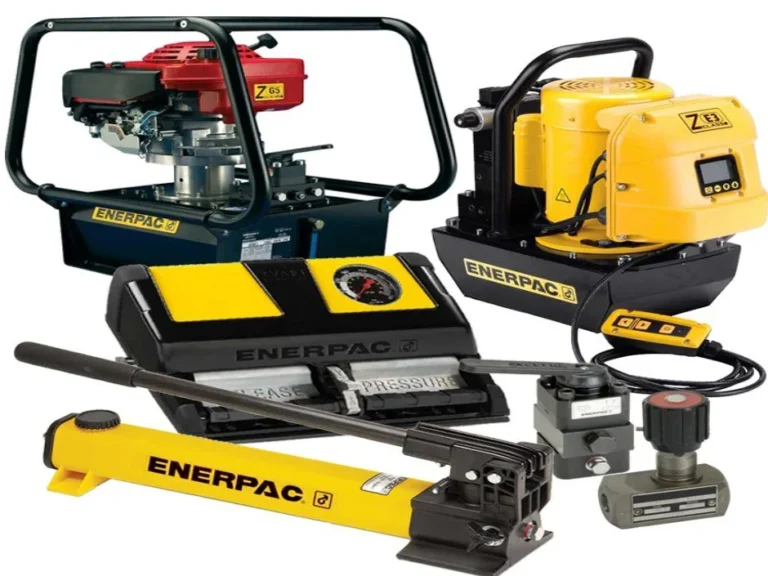

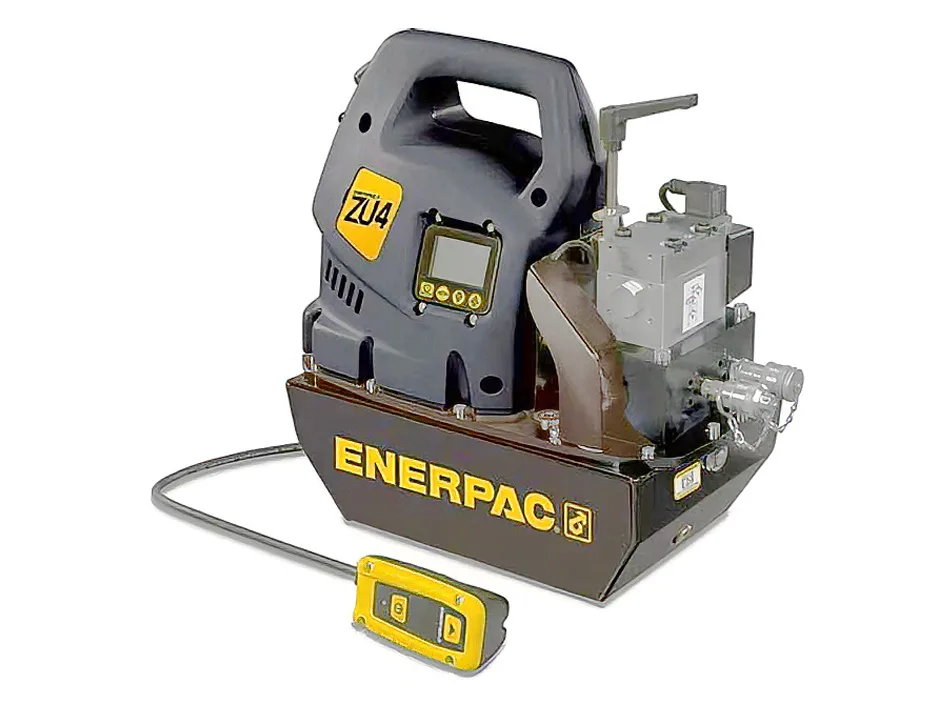

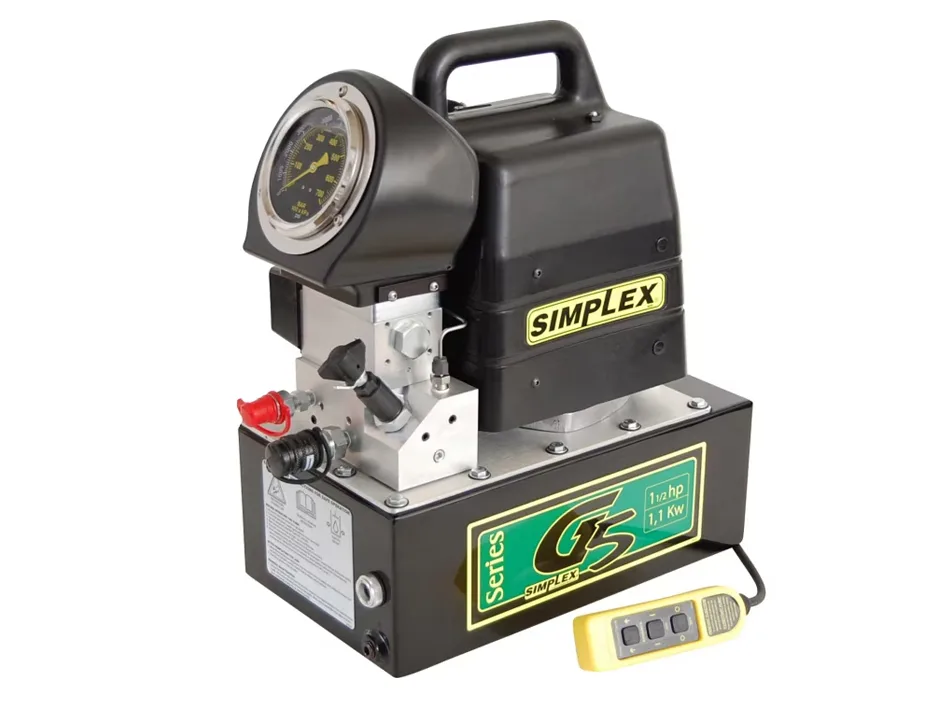

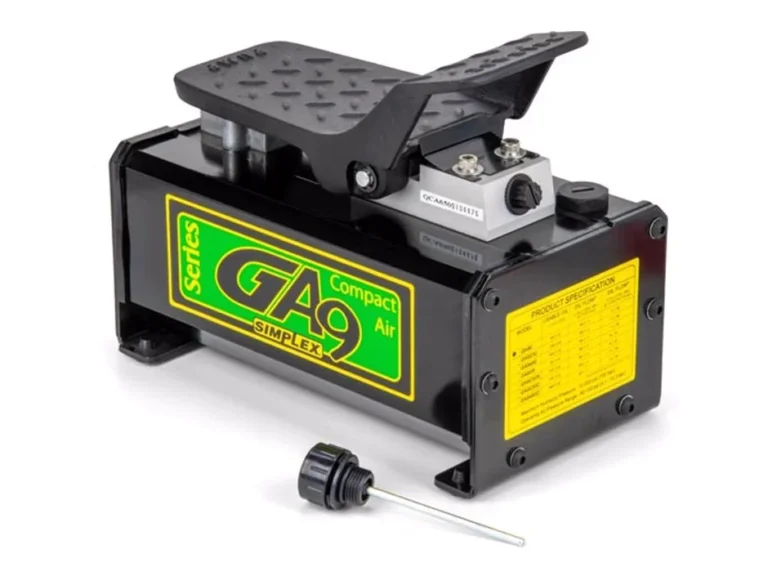

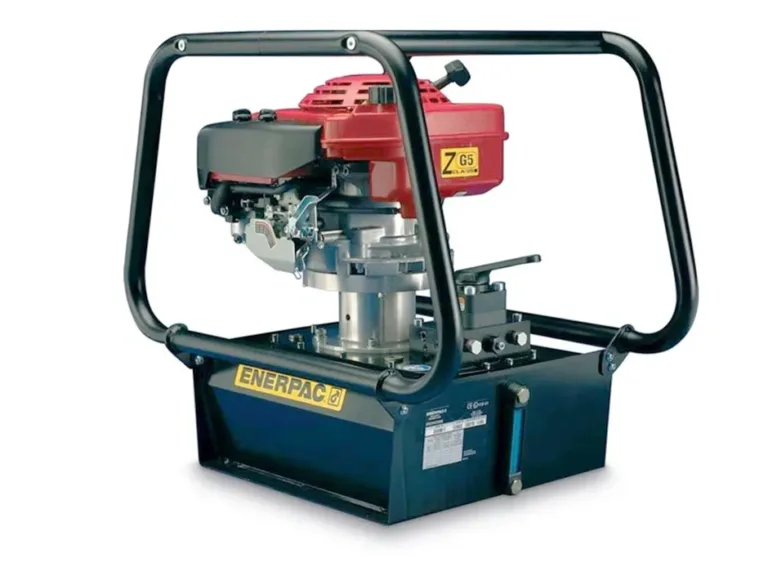

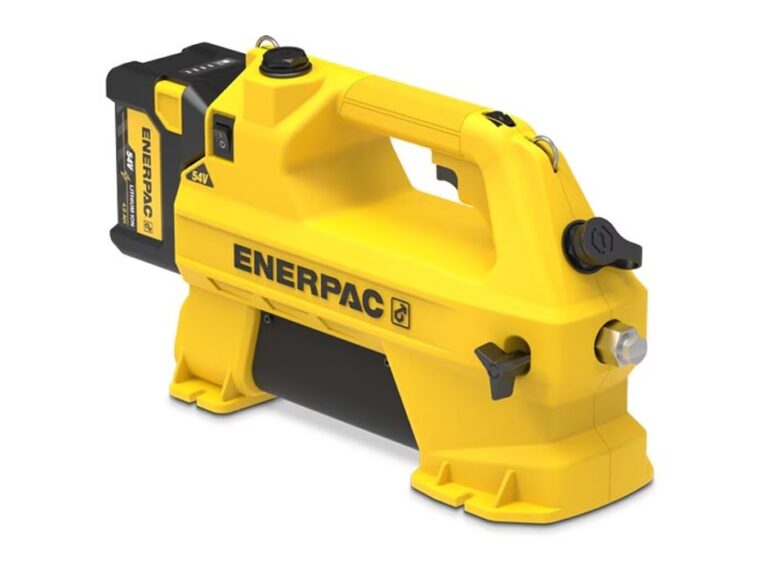

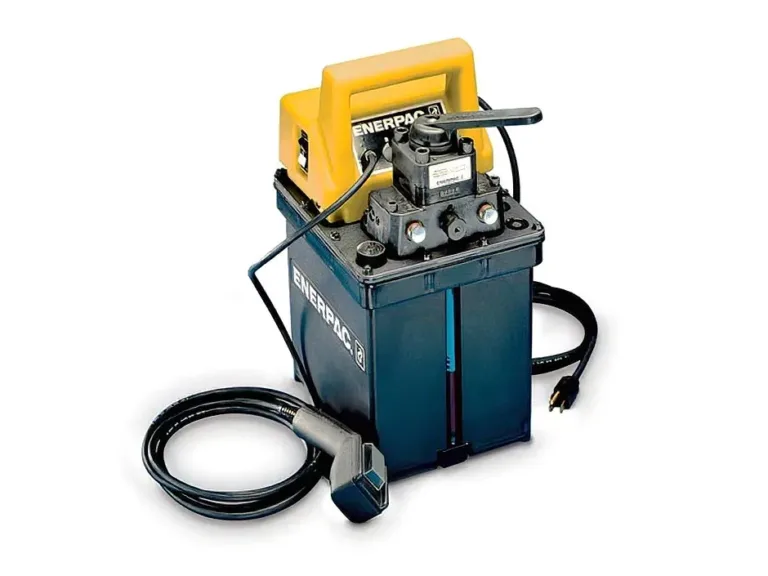

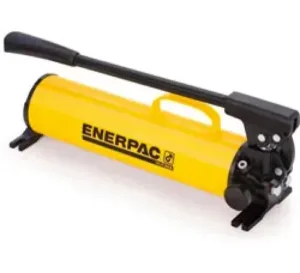

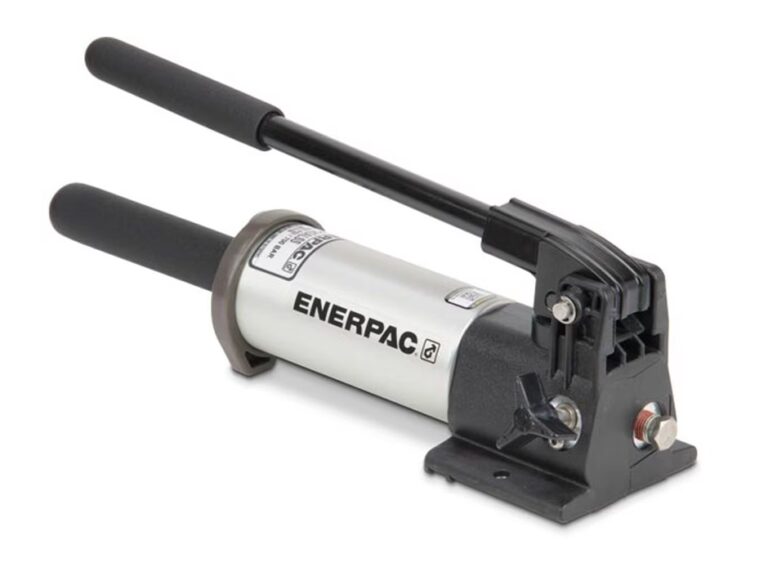

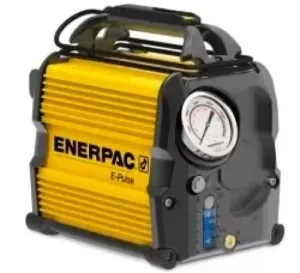

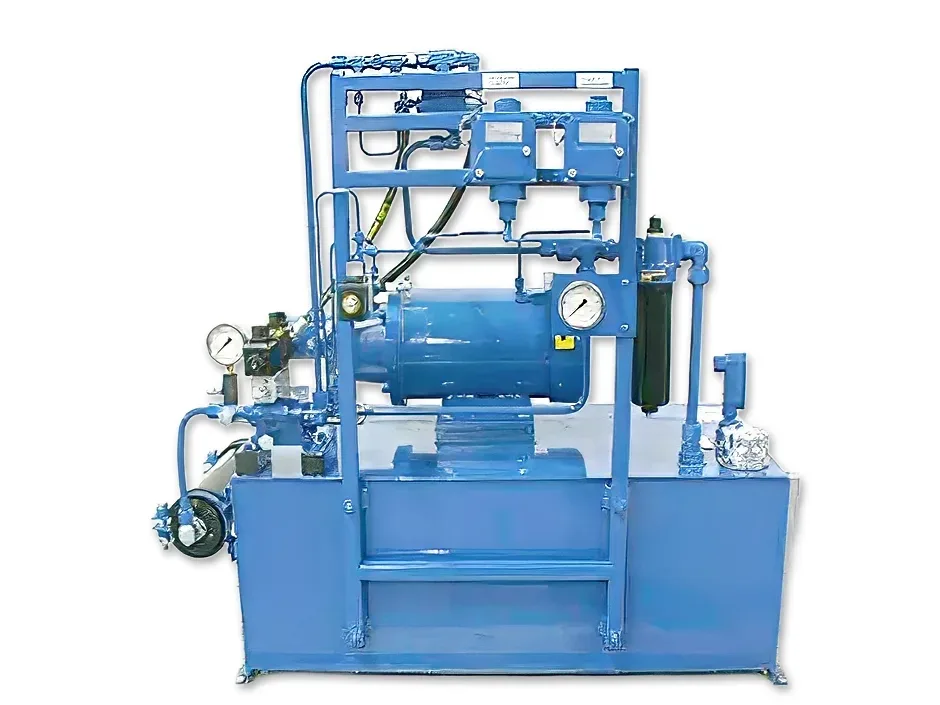

Custom power units and hydraulic pumps made to order. Electric, Gas, Diesel or Air Operated power units. Flow rates range from 1 GPM to 100 GPM. Our hydraulic pumps are available in over 1000 different configurations. They have a pressure rating of 10,000 psi.

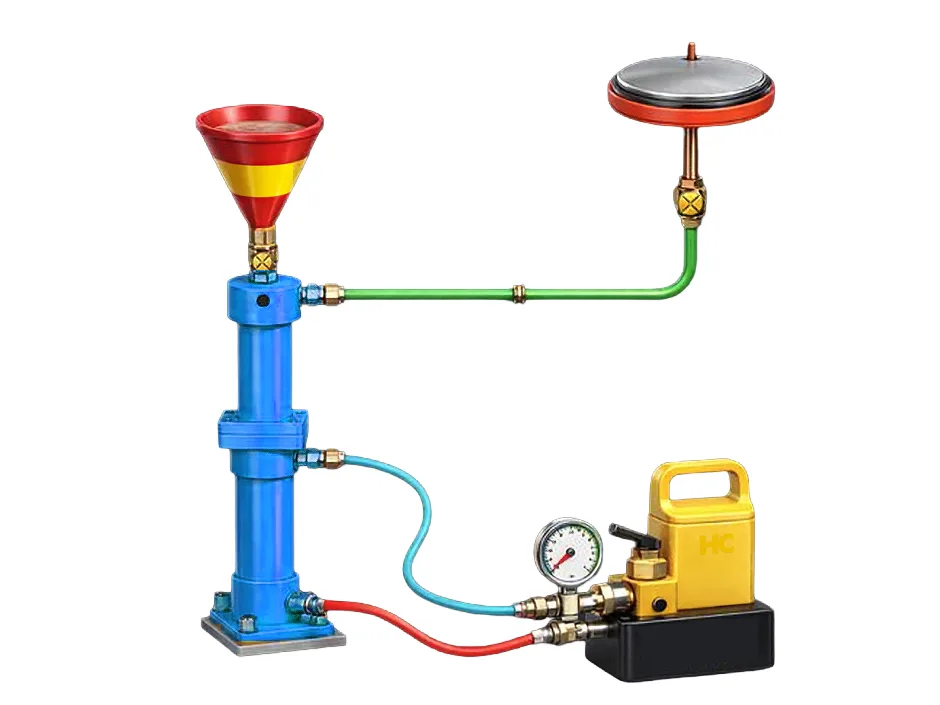

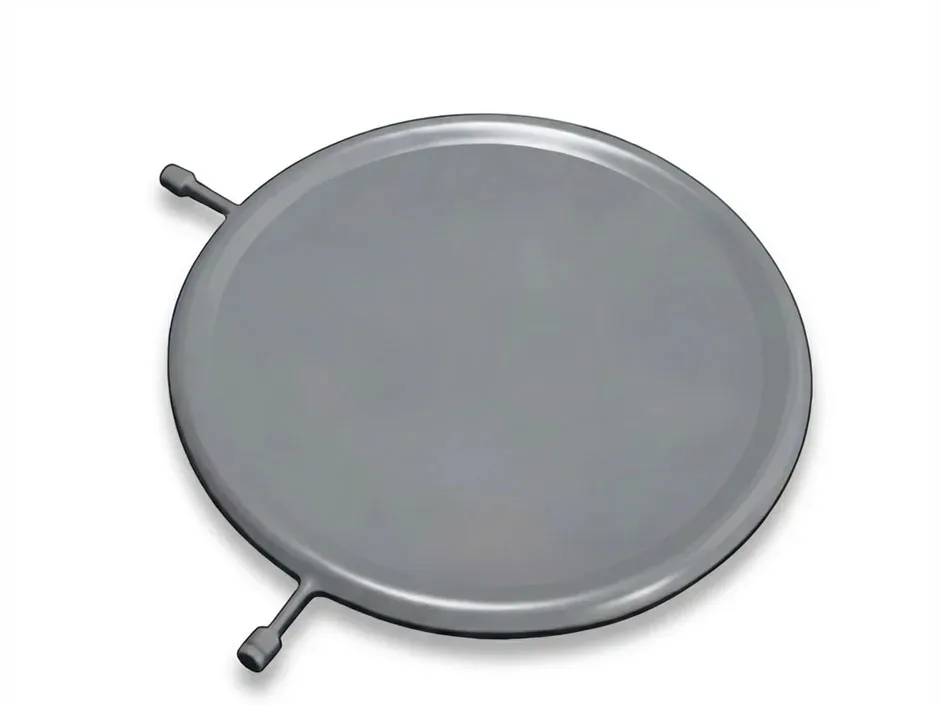

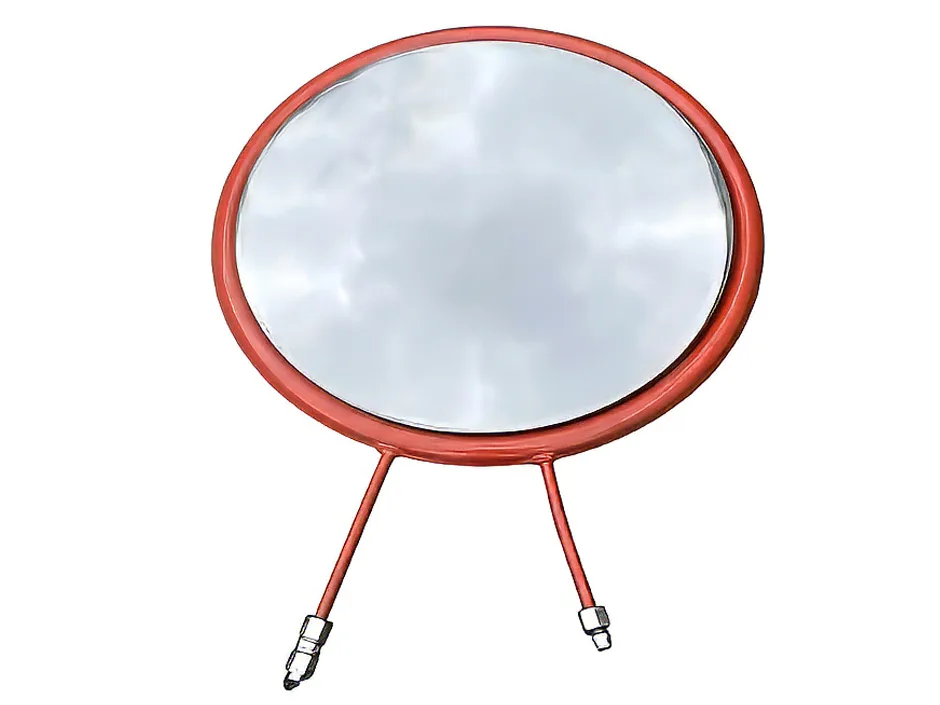

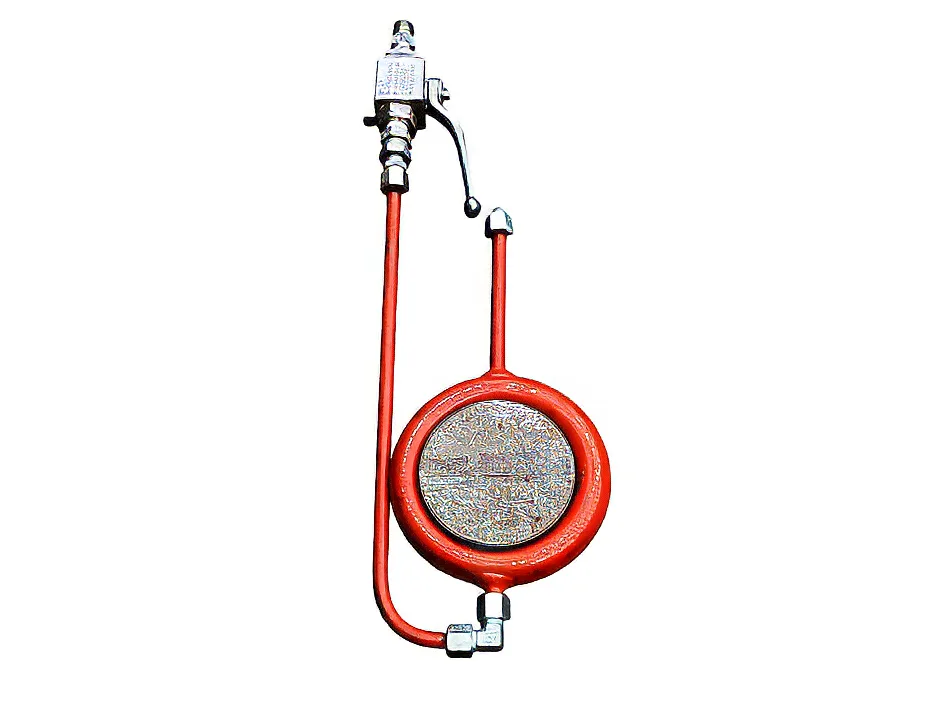

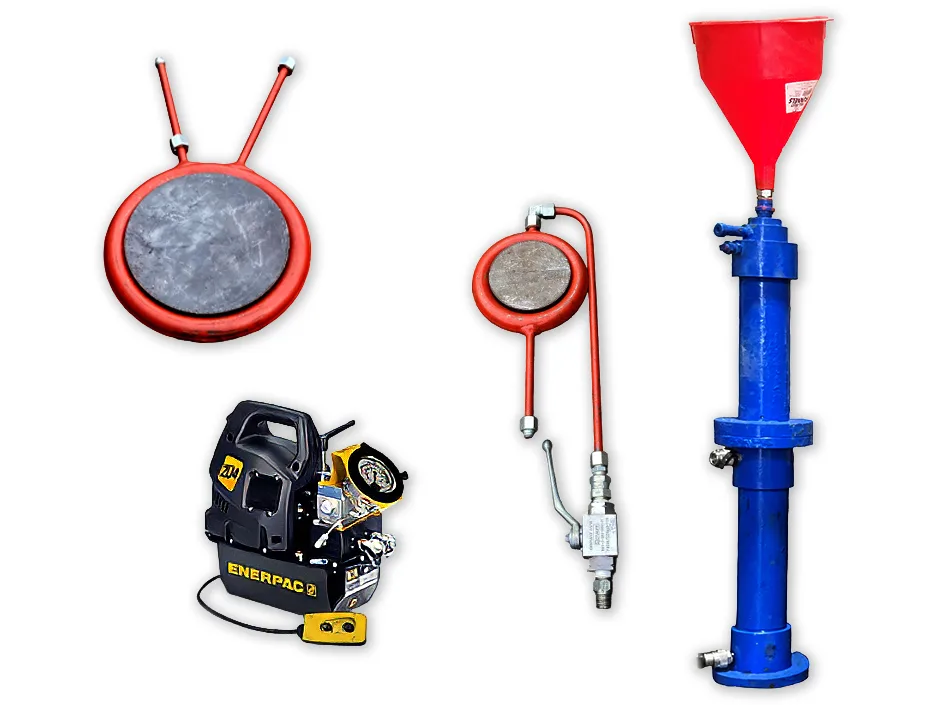

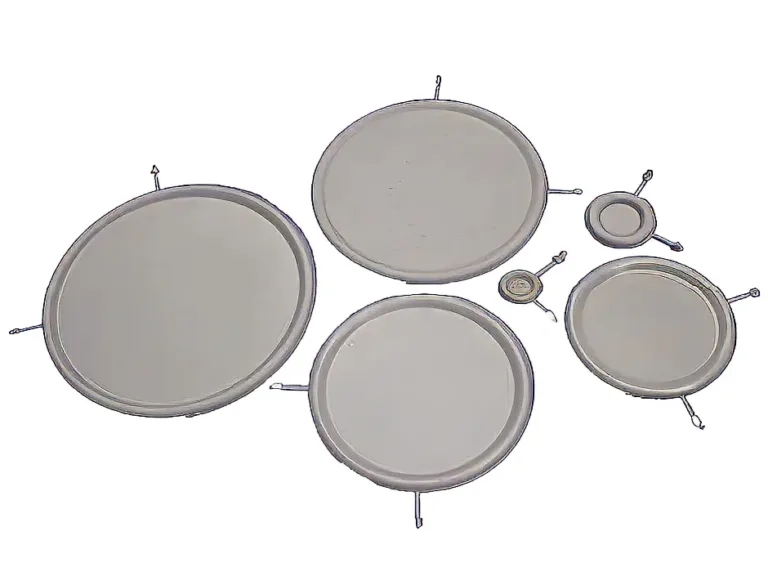

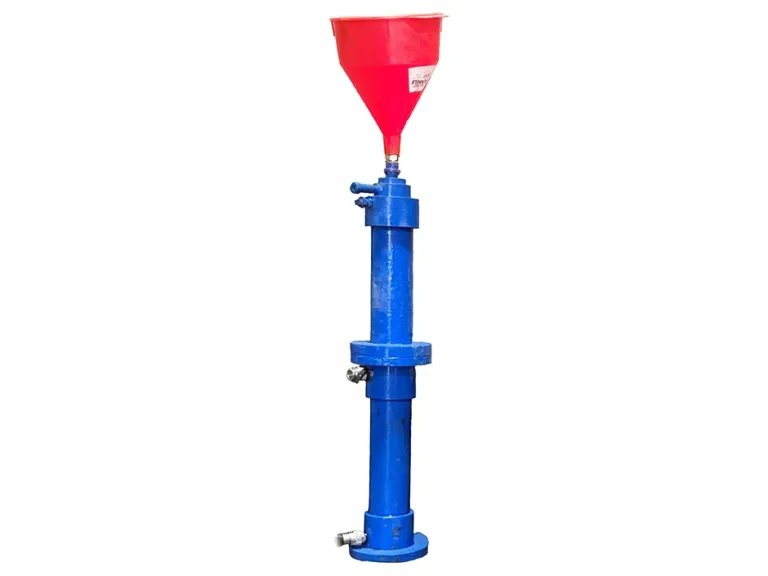

Freyssi Flat Jacks are simple, practical devices for the civil or structural engineer wherever the application or control of large forces is required. Flat jacks are frequently used in the solution of unforeseen problems such as in remedial measures or structural additions.

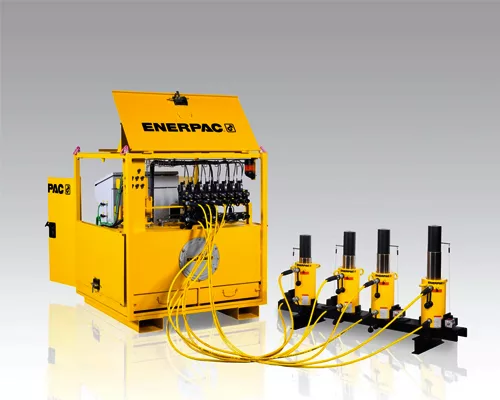

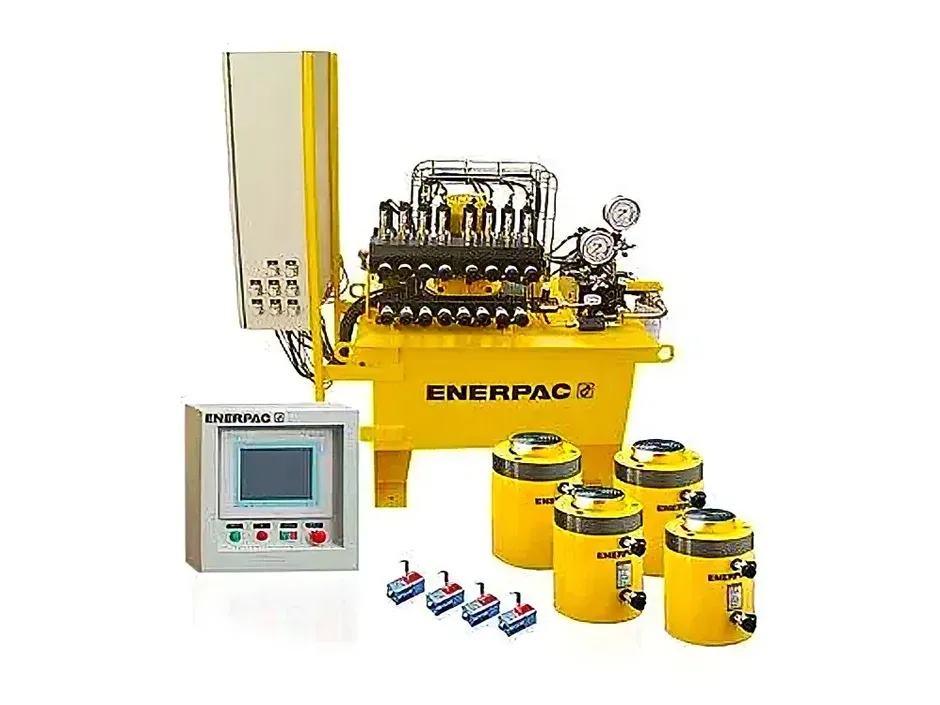

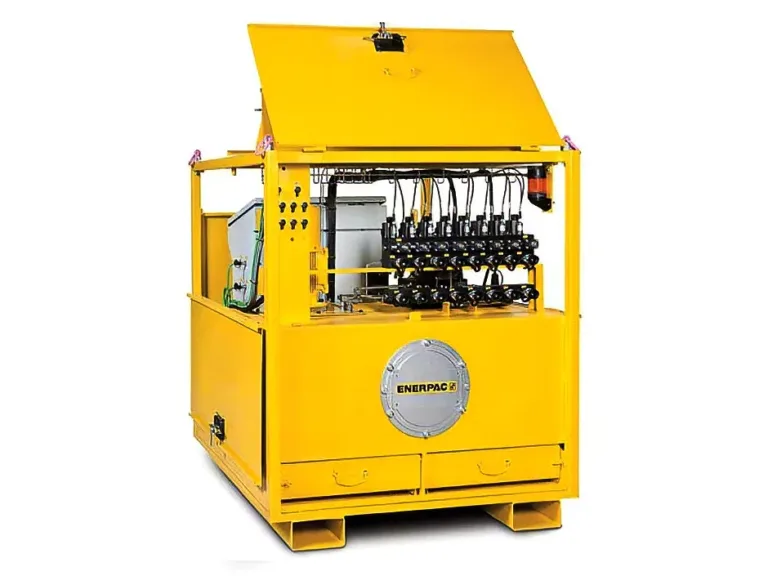

SYNCHRONOUS LIFTING SYSTEMS
The sensor extension is different from the Cylinder stroke value. The sensor extension is hooked to the load, and it has a value even when the Cylinder is collapsed. The potential applications of this system are numerous synchronized lifting levering, pushing, pulling and positioning using computer technology.of a synchronous lifting system

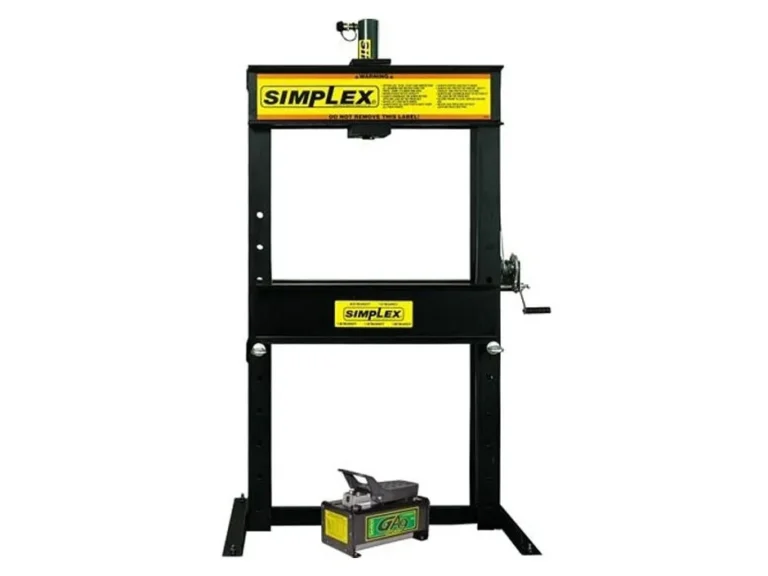

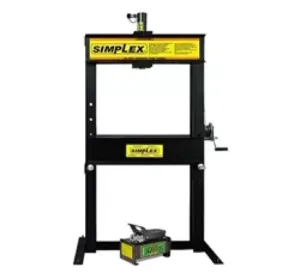

The hydraulic press depends on Pascal’s principle: the pressure throughout a closed system is constant. One part of the system is a piston acting as a pump, with a modest mechanical force acting on a small cross-sectional area; the other part is a piston with a larger area which generates a correspondingly large mechanical force. Only small-diameter tubing (which more easily resists pressure) is needed if the pump is separated from the press cylinder.
Power Team Monostrand Stressing Jacks are the most durable in the industry.
Monostrand Stressing Jacks suited for work on slab-on-grade where dirt, heat and high volume use take their toll.
Stressing jacks are mainly used on construction sites for stressing mono-strand anchors, and for the separate stressing of the strands of multistrand tendons.
We can provide customized jacking equipment to test driven piles from 1 -2000 tons. The systems can be manually, electrically or automatically controlled.

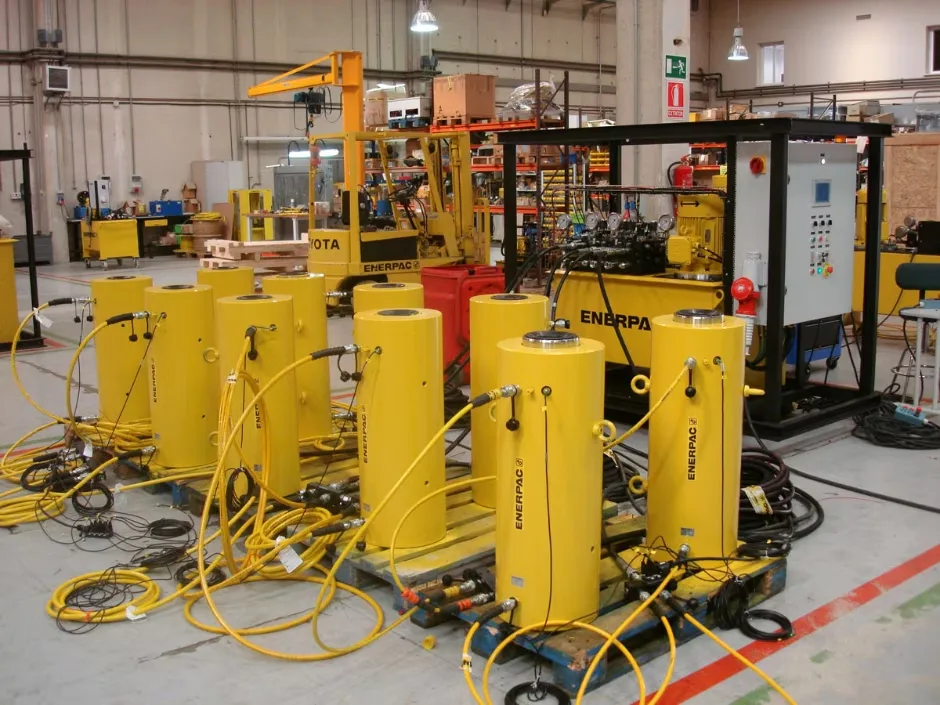

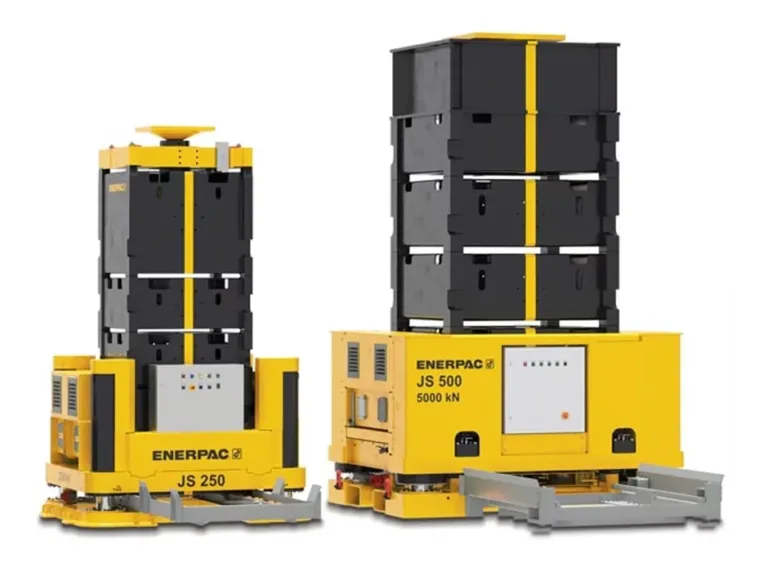

WB Equipment has delivered components for multiple jacking systems. Our knowledge of structural design, hydraulics, and automation means that we are capable of designing a complete jacking system with controls that allow for fully automated jacking and monitoring.
HYDRAULIC TORQUE WRENCH
A hydraulic torque wrenchis a power tool designed to exert torque on a fastener to achieve proper tightening or loosening of a connection through the use of hydraulics. A torque wrench is applied to the nut either directly or in conjunction with an impact socket. Hydraulic torque wrenches apply a predetermined, controlled amount of torque to a properly lubricated fastener.

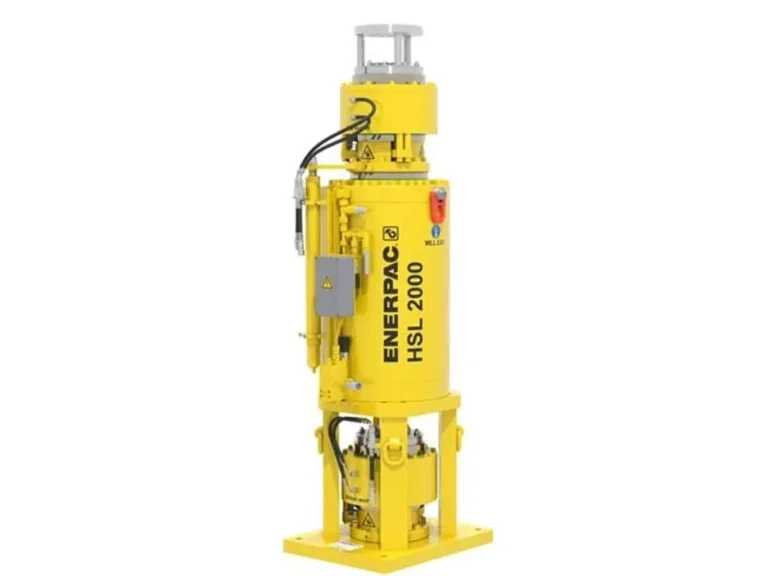

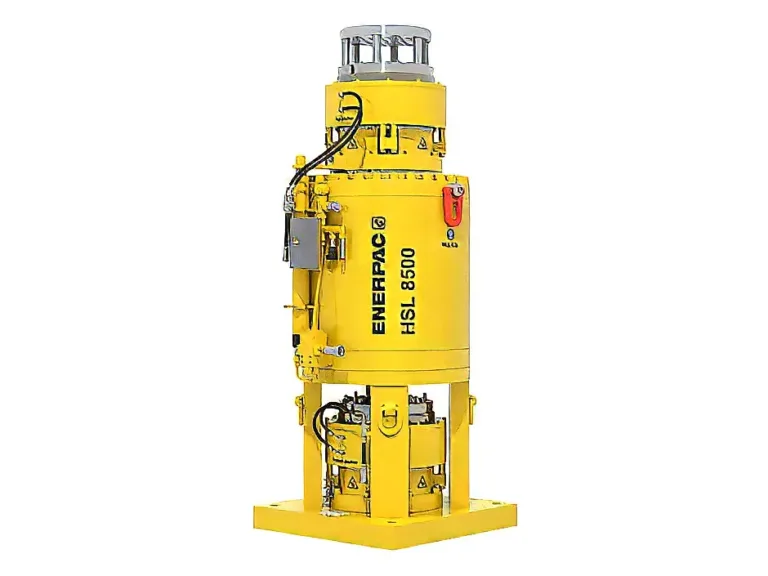

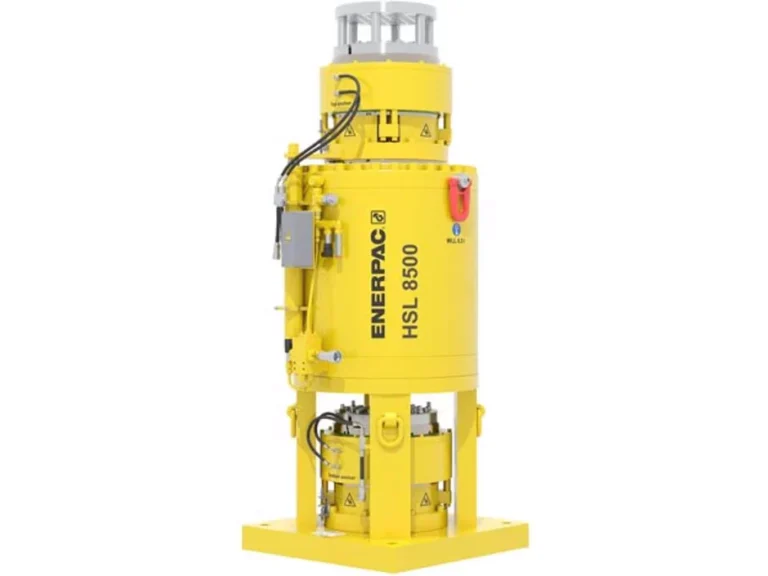

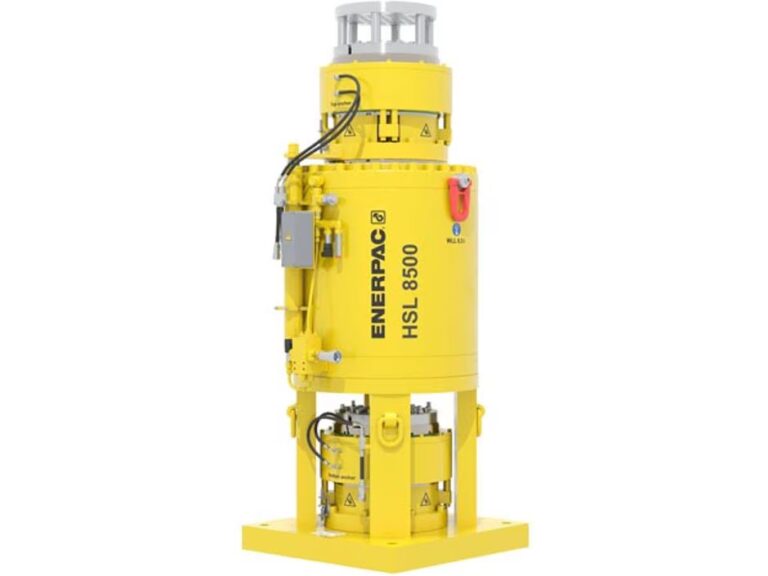

A strand jack (also known as strandjack) is a jack used to lift very heavy (e.g. thousands tons or more with multiple jacks) loads for construction and engineering purposes.

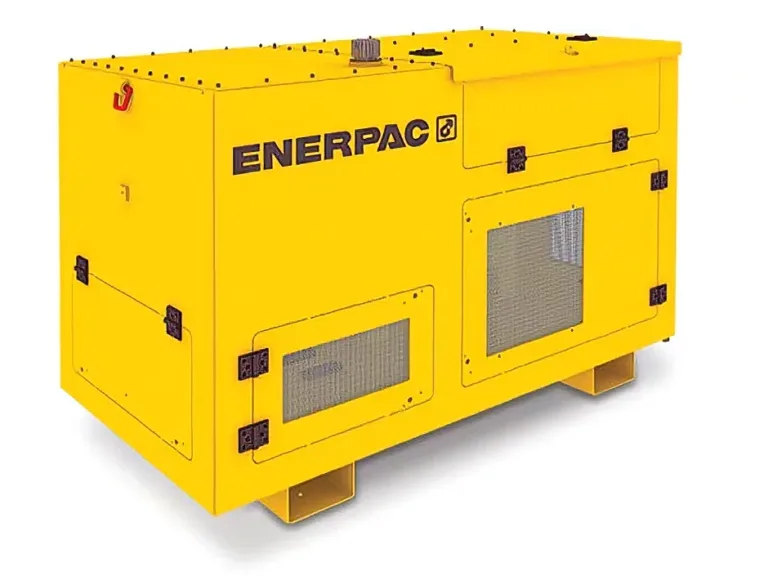

Strand jacks can be used horizontally for pulling objects and structures, and are widely used in the oil and gas industry for skidded loadouts. Oil rigs of 38000 Te have been moved in this way from the place of construction on to a barge. Since multiple jacks can be operated simultaneously by hydraulic controllers, they can be used in tandem to lift very large loads of thousands of tons. Even the tandem use of two cranes is very difficult operation.
A hoist is a device used for lifting or lowering a load by means of a drum or lift-wheel around which rope or chain wraps. It may be manually operated, electrically or pneumatically driven and may use chain, fiber or wire rope as its lifting medium.
The basic hoist has two important characteristics to define it: Lifting medium and power type. The lifting medium is either wire rope, wrapped around a drum, or load-chain, raised by a pulley with a special profile to engage the chain. The power can be provided by different means. Common means are hydraulics, electrical and air driven motors.

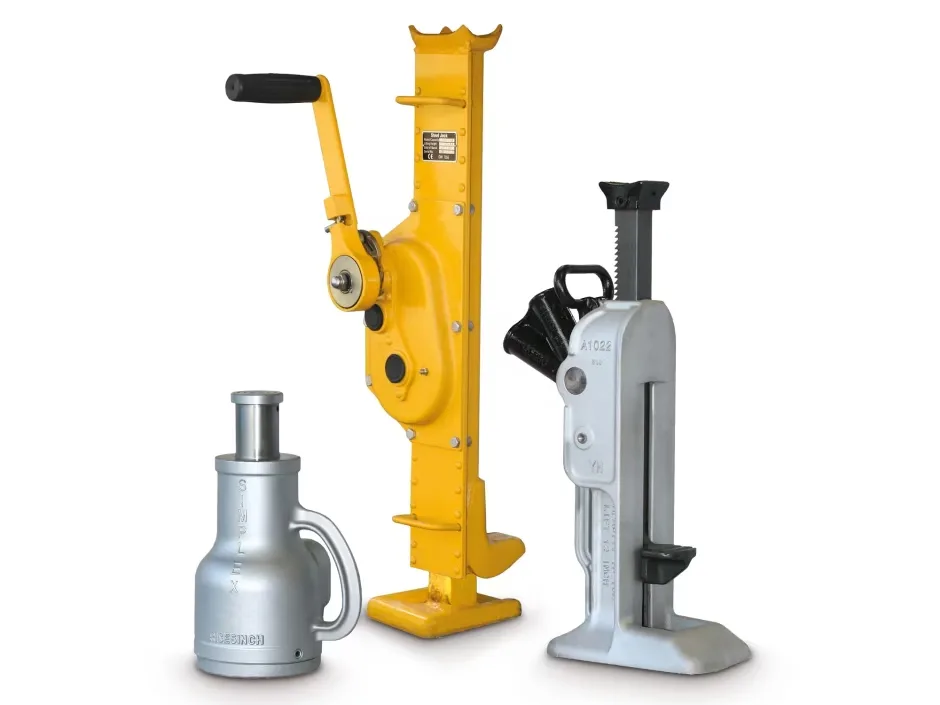

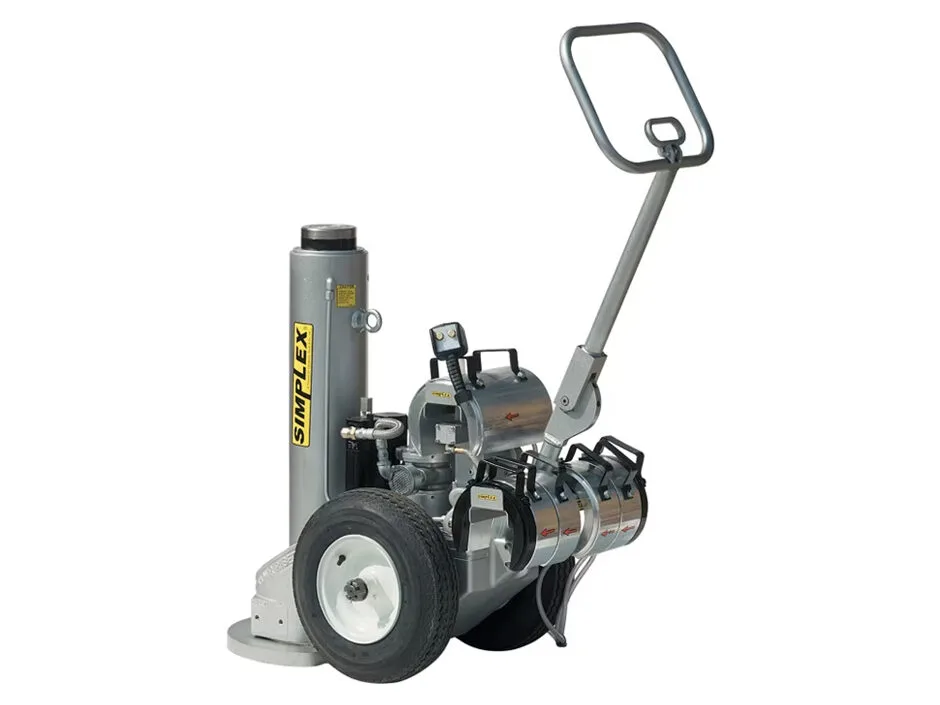

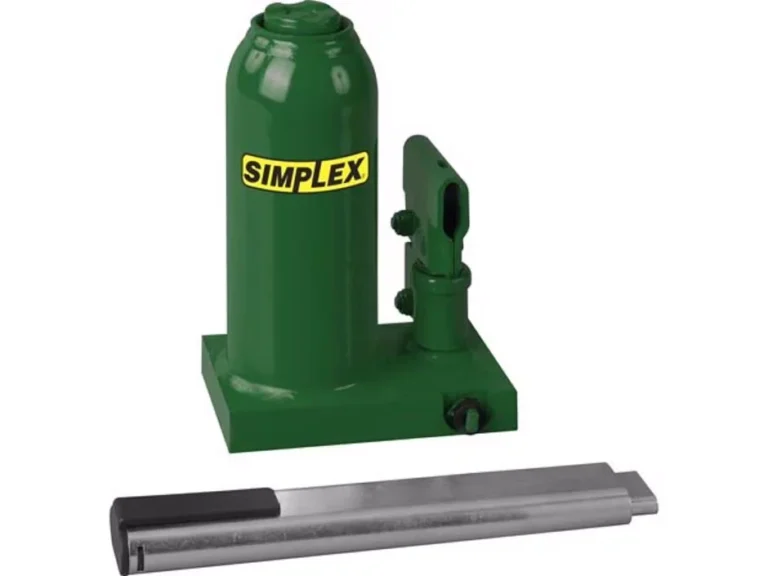

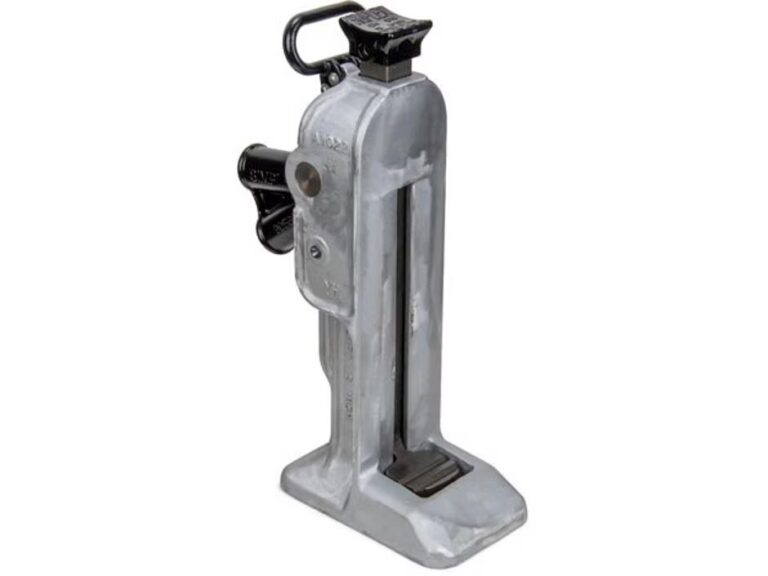

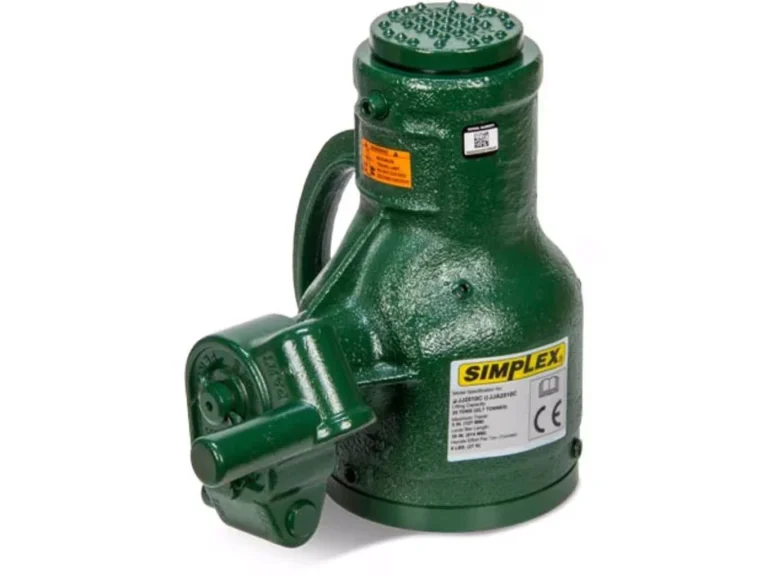

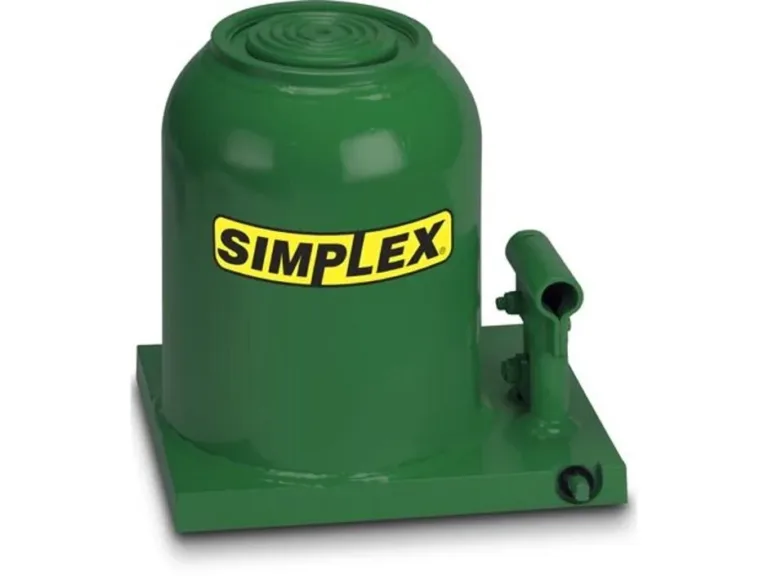

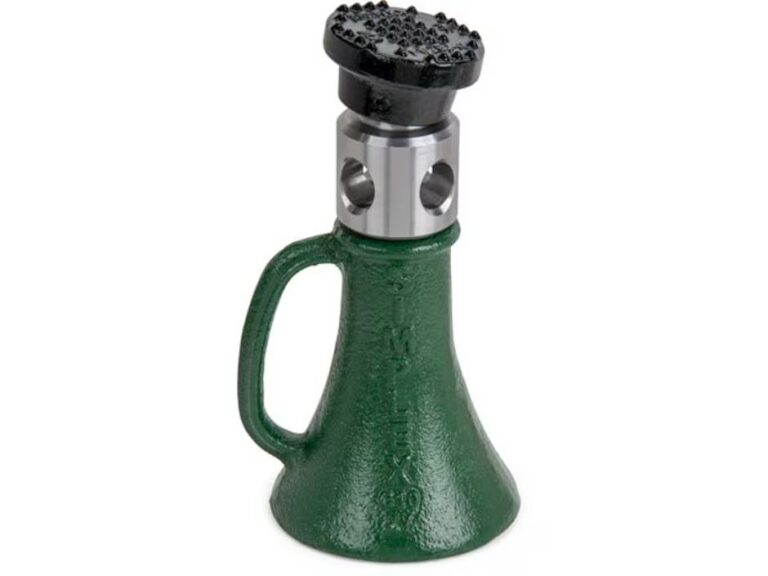

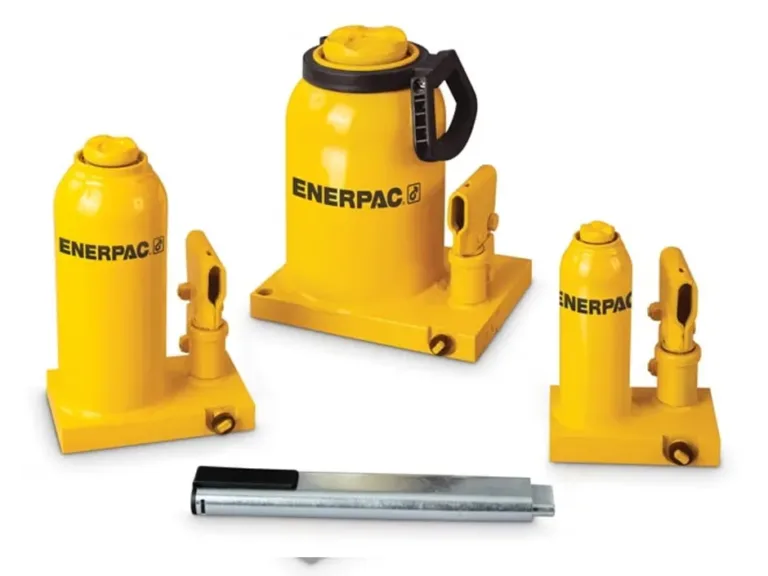

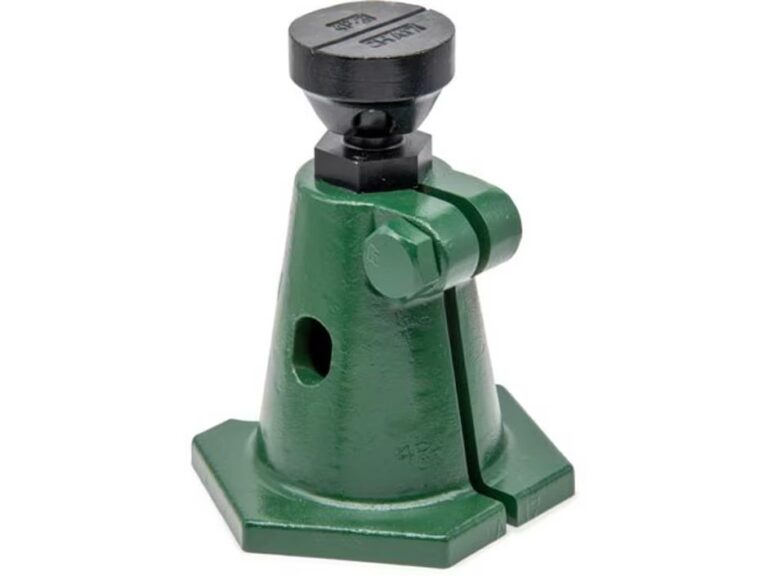

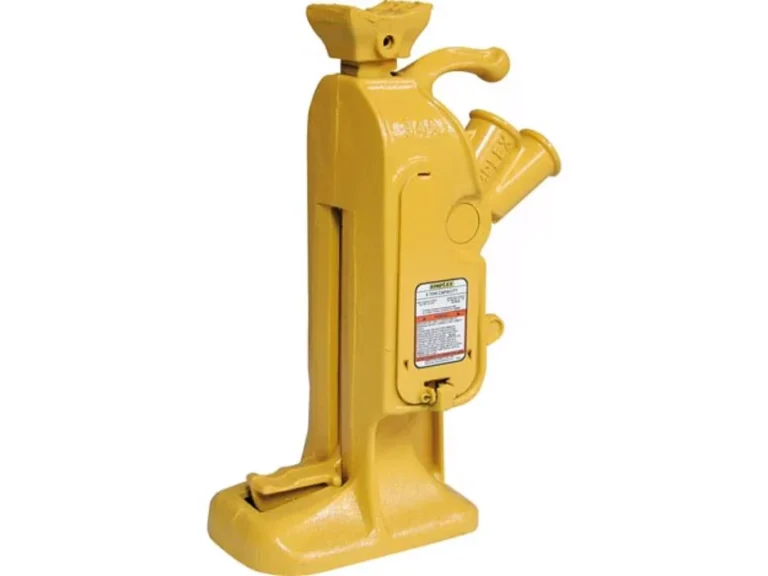

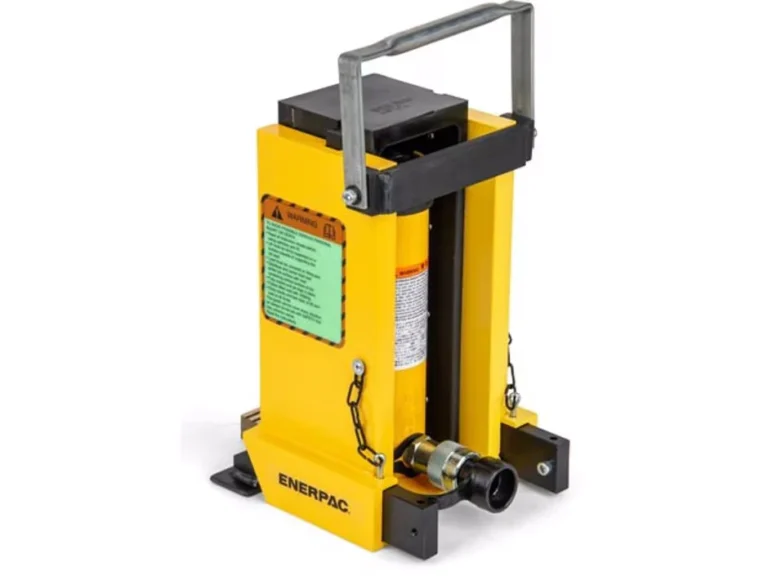

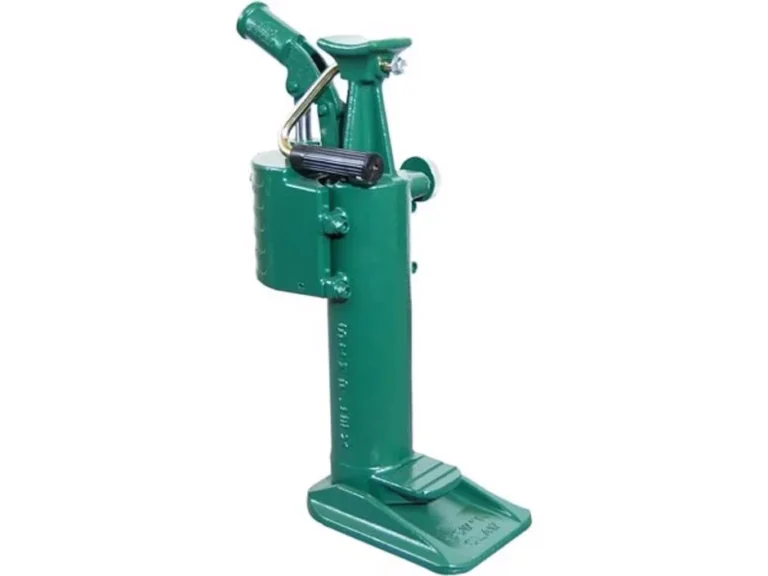

A jack, screwjack or jackscrew is a mechanical device used as a lifting device to lift heavy loads or to apply great forces. A mechanical jack employs a screw thread for lifting heavy equipment.
A hydraulic jack uses hydraulic power. The most common form is a car jack, floor jack or garage jack, which lifts vehicles so that maintenance can be performed. Jacks are usually rated for a maximum lifting capacity (for example, 1.5 tons or 3 tons). Industrial jacks can be rated for many tons of load.

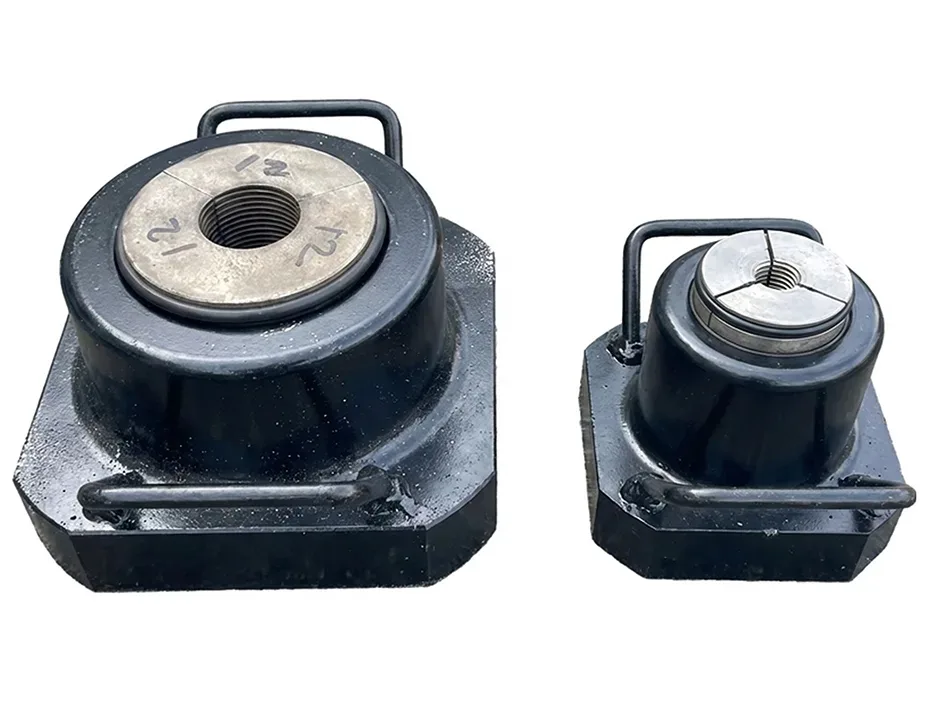

Quick acting re-bar grips are available for pull out testing of reinforcing bars in concrete, (re-bar/reinforcement bars) used in construction of highways, bridges, and tunnels as well as rigging and other applications.
When used with hydraulic jack, user slips jack and grip over grouted re-bar and applies pressure to load. These re-bar grips come in sizes No. 4-18 and accommodate construction industry’s focus on repair, maintenance, and building of public infrastructure.

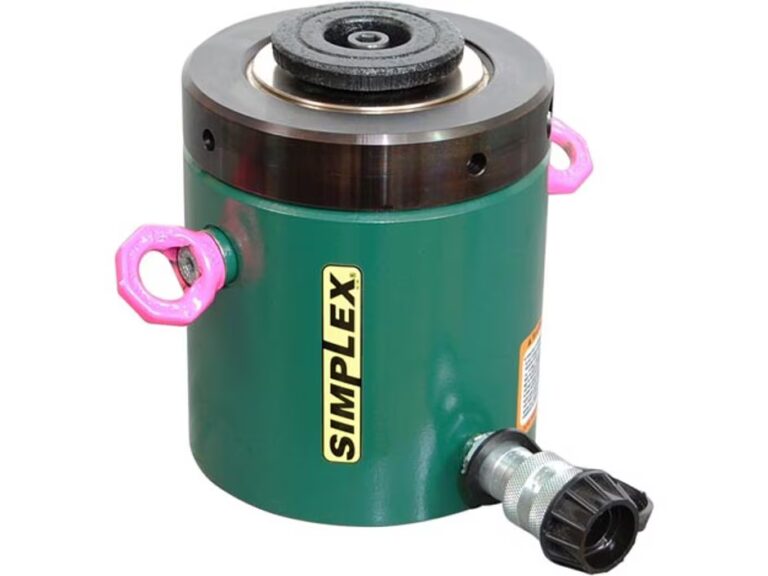

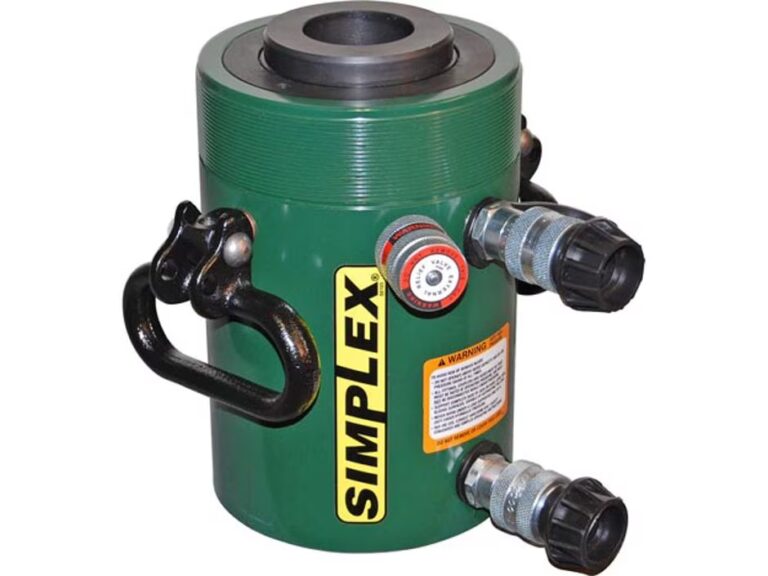

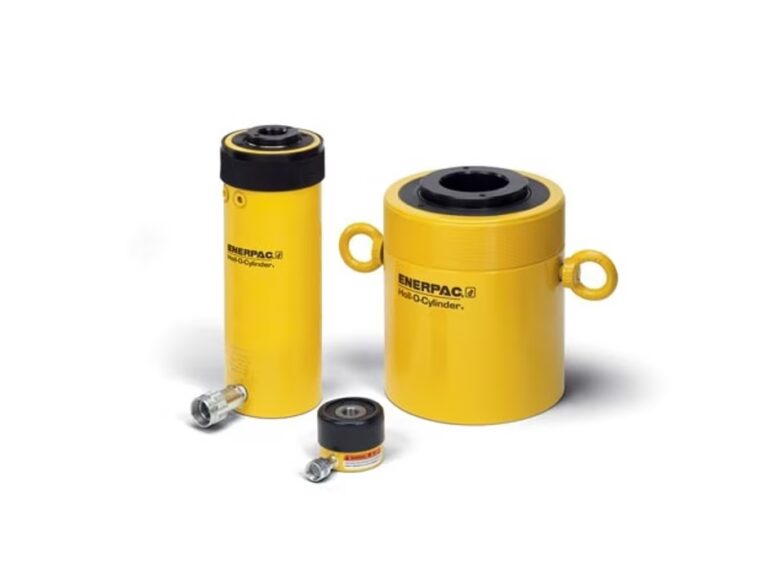

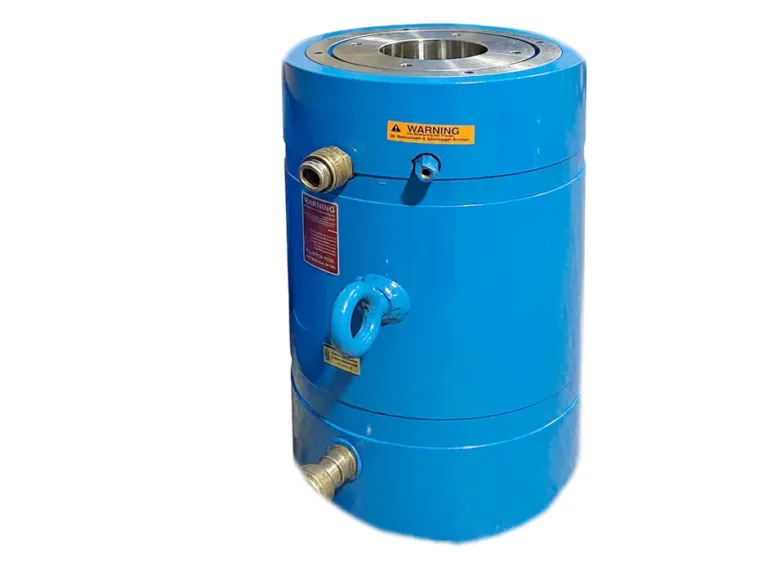

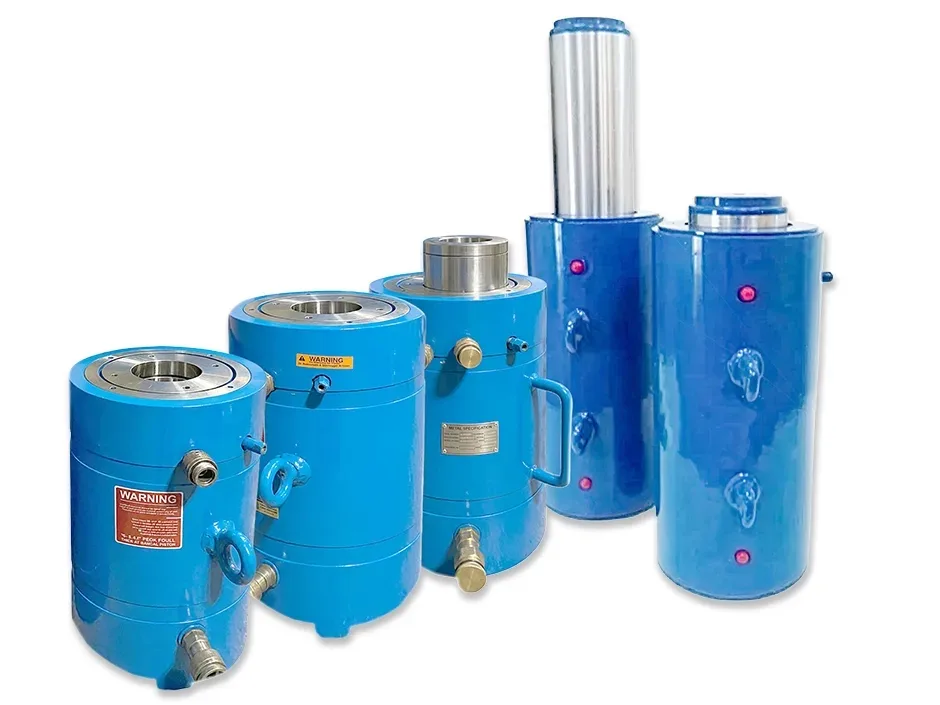

CUSTOM CENTER HOLE CYLINDERS

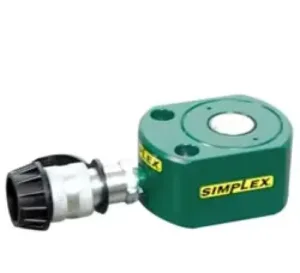

Custom made cylinders made to your specifications. All cylinders calibrated and traceable back to NIST. Centerhole, locknut, low height, single acting, double acting, long stroke.
- 0-1500 tons
- Centerhole sizes .75 inch to 15 inches

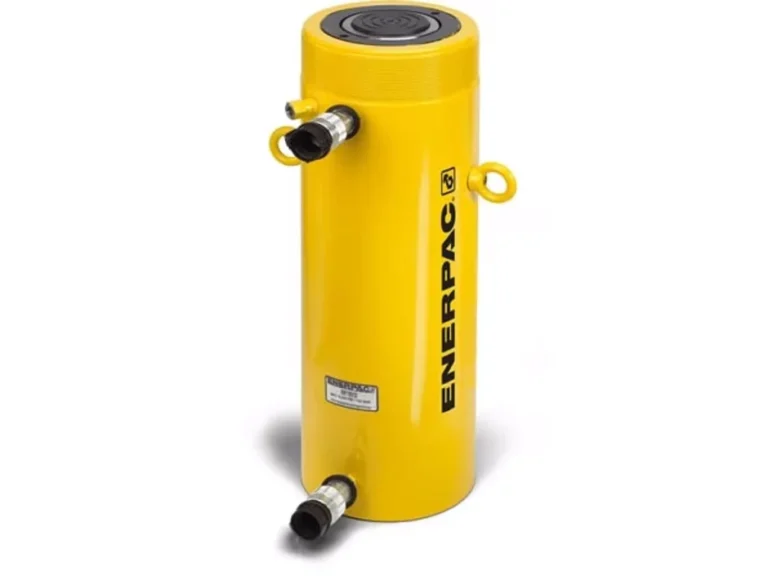

- Stroke ½ inch to 10 feet
Enerpac is a global market leader in high pressure hydraulic tools, controlled force products and solutions for precise positioning of heavy loads.

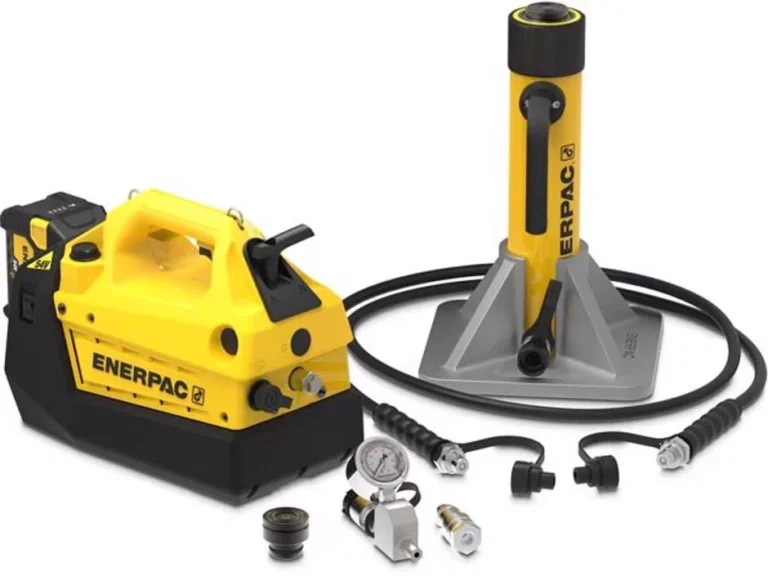

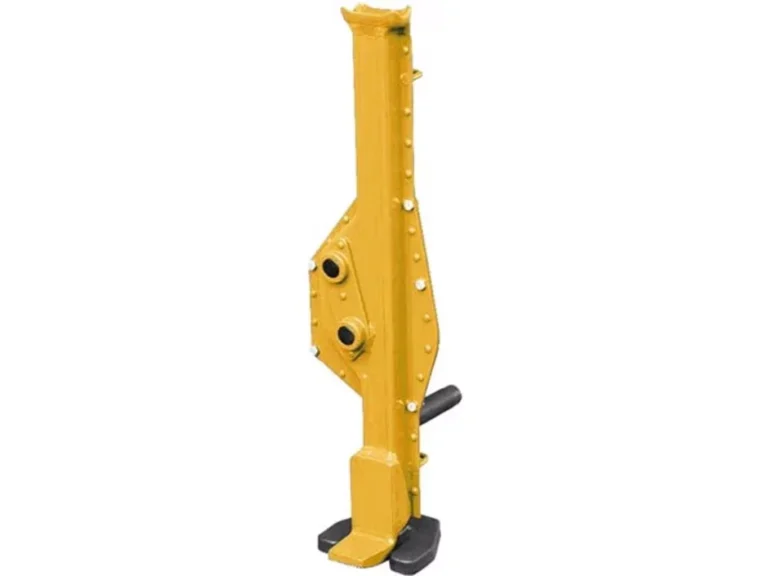

Work site solutions for stressing, lifting and surfacing for railroad maintenance.
- Track Jacks
- Rail Pullers
- Lifting Jacks
- Truck Jacks

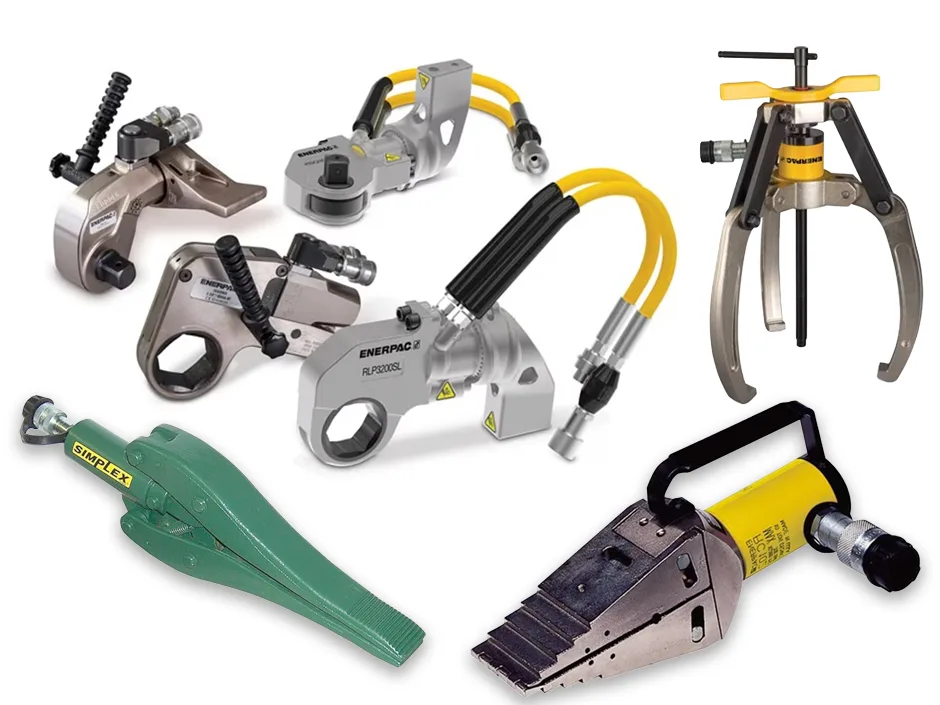

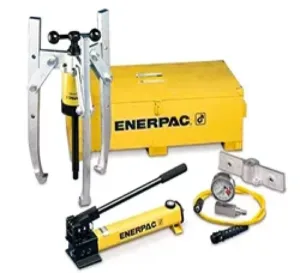

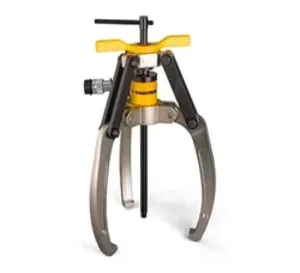

Wide range of high strength mechanical and hydraulic pullers
- Master Puller Sets
- Grip Puller Sets
- Cross Bearing Puller Sets
- Bearing Pullers
- Bearing Cup Pullers
- Posi Lock Pullers
